Mastering Video Scopes in DaVinci Resolve 20: A Detailed Tutorial on Exposure, White Balance, Saturation, and Color Gamut

Thom Lyons | Visual+Aid Productions

Why Scopes Are Essential for Professional Color Grading [00:32]

Video scopes are critical for professional color grading because they provide an objective and reliable source of truth, unlike the human eye and monitor which can be deceptive.

• Overcoming Human Perception: Your brain automatically adjusts to different lighting and neutralizes color casts, making it difficult to trust your own perception of color and brightness without an objective reference.
• Ensuring Broadcast Compliance: Broadcasters and streaming services have strict technical specifications. Scopes provide clear visual indicators when brightness levels are too high/low or colors are too saturated, preventing rejection of your video file.

Pro Setup: Undocking and Arranging Scopes [01:46]

Effective scope management enhances workflow and provides a clearer view of your image data.

• Locating the Scopes Panel: The scopes panel is in the bottom right corner of the color page, identifiable by a graph-like icon.
• Undocking for Enhanced Workflow:
  • Click the expand icon in the top right corner to undock the panel, turning it into a floating window.
  • This window can be resized, moved, or placed on a second monitor for a large, persistent view without sacrificing screen space for the viewer and color wheels.
  • Keyboard shortcuts: Command-Shift-W (Mac) or Control-Shift-W (Windows).
• Layout Options:

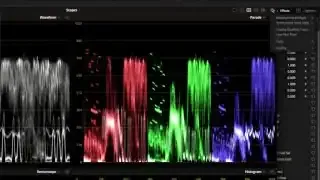

  • When undocked, you can choose layouts for viewing multiple scopes simultaneously (one, two, four, or nine scope layouts). Each section can display a different scope.
  • Common layouts include waveform and parade side-by-side for exposure and color balance, or four scopes for final quality control.
• Global Settings in the Three-Dot Menu:
  • Ratio: Changes the display format of the scopes (4:3 or 16:9), affecting only the scope panel's appearance.
  • Quality: Adjusts processing power for rendering scopes (High for detail, Low for smooth playback, Auto for balance).
• Display Qualifier Focus [03:19]:
  • This feature links a specific pixel in the image to its location on the scopes.
  • Activate it from the three-dot menu, then use the eyedropper qualifier tool from the main viewer.
  • Hovering over an image reveals circles on the scopes (or lines on the histogram) showing the pixel's data. This is useful for checking skin tones, neutral grays, or other critical areas.



How to Read the WAVEFORM Scope (Exposure & Contrast) [04:36]

The waveform is the primary tool for analyzing brightness while preserving spatial information, showing where brightness exists in your frame.

• Interpreting the Axes:

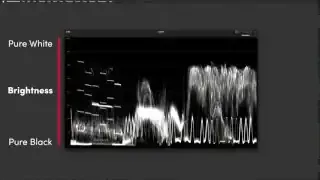

  • Vertical Axis: Represents brightness intensity (0 for pure black at the bottom, 1023 for pure white at the top in Resolve's default 10-bit scale).
  • Horizontal Axis: Directly mirrors the video frame; pixels on the left/right of the image appear on the left/right of the waveform.
• Understanding the Trace:
  • The glowing plot is called the trace, and its brightness and density indicate the concentration of pixels at specific positions and brightness levels.
  • Bright parts of the image are near the top of the scope; dark parts are near the bottom.
  • A flat or low-contrast image shows a compressed trace in the middle.
• Matching Exposure [05:59]: The waveform is highly effective for matching exposure between different shots. By using a split-screen view with a reference still, you can objectively align black levels, white levels, and overall contrast.
• Waveform Controls:
  • Display Modes:
    • Y mode: Shows composite luminance, ideal for general exposure work.
    • RGB mode (with Colorize): Overlays individual red, green, and blue channel waveforms. Neutral colors appear as a single white line where the three traces converge, useful for white balance checks on specific objects.
    • CbCr mode [06:54]: Analyzes only color information, independent of brightness, in the YCbCr color space.
      • Vertical axis: Amount of color difference.
      • Center line: Zero color information (neutral black, white, or gray).
      • Traces moving up: Shift towards blue (Cb) or red (Cr).
      • Traces moving down: Shift towards yellow (opposite of blue) or cyan/green (opposite of red). This mode is rarely used outside of broadcast engineering.
  • Colorize (in Y mode): Toggles the waveform trace colors to match actual hues from the image, quickly showing which colors exist at different brightness levels.
  • Extents: Reveals weak signal information not visible in the main trace, drawing an outline to help identify slight clipping beyond legal broadcast limits.
  • Waveform and Graticule Sliders: Adjust visibility of the trace and graph lines.
  • Show Reference Levels: Enables adjustable low and high reference guides for measuring specific levels.
  • Low Pass Filter (Global Setting): Applies smoothing to the trace, filtering noise for clarity. While it helps see detail, it can make highest/lowest parts appear slightly off, so consider enabling Extents as well for true levels.



How to Read the PARADE Scope (Perfect White Balance) [08:47]

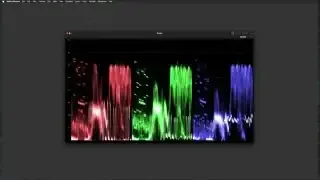

The parade scope is a variant of the waveform, separating red, green, and blue channels into three distinct side-by-side waveform displays.

• Purpose: Analyzes the relative intensity of each primary color across the entire tonal range.
• Interpreting the Graphs: Each of the three graphs (red, green, blue) is read like a standard waveform, with the vertical axis representing brightness and the horizontal axis representing frame position.
• Identifying Color Casts: A color cast appears as a misalignment in the height of the three parades in areas that should be neutral (e.g., if the blue parade is significantly higher than red and green in a white area, there's a blue cast).
• Critical Point: Align Neutral Parts, Not All Colors [09:35]: The goal is to align neutral elements (grays, whites, blacks) of the image, not to make all three parades look identical. A green forest should have a strong green channel; an ocean, a dominant blue channel.
• Parade Controls:
  • Display Modes:
    • RGB mode: Standard for color balancing.
    • YRGB mode: Adds a fourth parade for composite luminance to the left of the RGB parades.
    • YCbCr mode [10:07]: Similar to the waveform's CbCr mode but displayed as separate parades alongside luminance. Rarely used by non-broadcast engineers.
  • Colorize, Extents, and Reference Levels: Work the same way as on the waveform scope.



How to Read the VECTORSCOPE (Hue & Saturation) [10:36]

The vectorscope measures chrominance (color information), specifically hue and saturation, presenting it on a circular graph and ignoring brightness or spatial position.

• Interpreting the Circular Graph:

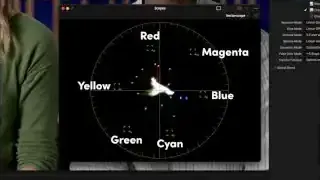

  • Perimeter: Represents the full spectrum of hues, with targets for the six primary and secondary colors (red, magenta, blue, cyan, green, yellow). These targets correspond to directions for pushing colors with color wheels.
  • Center: Represents zero saturation, a complete absence of color. A desaturated image plots as a small trace clustered near the center.
• Understanding the Trace:
  • The cloud-like trace is your image data.
  • Hue: The direction the trace extends from the center indicates the dominant hues (e.g., towards 'B' target means strong blue content).
  • Saturation: The distance from the center indicates the saturation level. A vibrant, highly saturated image has a large trace expanding towards the perimeter.
• Critical Tasks for Vectorscope:
  • 1. Ensuring Broadcast Safe Saturation [11:48]:
    • The vectorscope's target boxes represent maximum legal saturation levels for broadcast delivery.
    • If the trace extends beyond these boxes, colors are considered "illegal" and the file may be rejected. Saturation controls must be used to pull the trace back within these limits.
  • 2. Checking Skin Tones [12:11]:
    • History of the Skin Tone Line: In early color television (1950s-60s), engineers discovered that human skin, regardless of race or ethnicity, has a consistent hue due to underlying blood flow. When plotted on a vectorscope with correct white balance, it consistently falls along a specific axis (roughly 11 o'clock between red and yellow targets). This became the "skin tone indicator" for calibrating cameras.
    • Modern Usage as a Guideline: The skin tone line (enabled in Resolve's scope settings) is a trusted guideline, not a bullseye. While rare for skin to perfectly match this mathematical ideal, if skin tones fall in the general vicinity of the line, it indicates a good place. Deviations far off the line suggest a color balance problem.
• Vectorscope Controls:
  • Display Ranges [14:54]: Options to show the whole image or just shadows, midtones, or highlights. This helps identify color casts or saturation issues in specific brightness zones.
  • Colorize and Extents: Similar to other scopes.
  • Combined Checkbox: Shows simultaneous overlapping extents for highlights, midtones, and shadows.
  • Low Range and High Range Sliders: Manually define boundaries for shadows, midtones, and highlights.
  • Show 2x Zoom: Magnifies the central area for precise adjustments to low-saturation images.
  • Target Options (Global Settings) [15:45]:
    • 75% Targets: Used for traditional broadcast television (Rec.709), a holdover from analog NTSC to prevent signal interference. Ensures colors are broadcast safe.
    • 100% Targets: Used for web, streaming services, or digital cinema. Digital platforms allow for the full color gamut. Always check delivery specifications.

How to Read the HISTOGRAM Scope (Checking Levels) [16:54]

The histogram provides a simple statistical overview of your image's tonal distribution, aggregating all pixels to show how many exist at each brightness level.

• Purpose: Quick assessment of overall exposure and contrast characteristics.

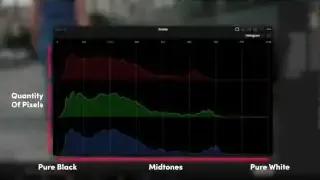

• Interpreting the Axes:
  • Horizontal Axis: Represents the full tonal range (pure black on the far left, pure white on the far right, mid-tones in the middle).
  • Vertical Axis: Represents the quantity of pixels. A tall peak means many pixels share that brightness level.
• Trace Interpretation:
  • Left-bunched data: Predominantly dark, low-key image (potential underexposure if unintentional).
  • Right-concentrated data: Bright, high-key image (potential overexposure if unintentional).
  • Bell-shaped curve in the middle: Balanced exposure with good mid-tone detail.
  • Tall peaks on both ends with a valley in the middle: High contrast (many dark and bright pixels, few mid-tones).
  • Sharp vertical line on far right: Clipped highlights.
  • Sharp vertical line on far left: Crushed blacks.
• Histogram Controls:
  • Display Modes: View either RGB or YRGB histograms.
  • Gain Slider: Scales the graph taller or shorter to change the level of detail.



What is a Color Gamut? (The CIE Chromaticity Scope) [18:20]

The CIE chromaticity scope is a specialized tool for verifying color gamut compliance.

• Understanding Color Gamut [18:30]: A gamut is the specific range of colors that a display technology can reproduce. Different video standards (e.g., Rec.709 for HD, Rec.2020 for HDR) have different gamuts.
• Purpose of CIE Scope: Verifies that colors in your video image comply with the color gamut of your intended delivery format.
• Interpreting the Diagram:
  • Displays the industry-standard CIE 1931 XY chromaticity diagram.
  • Tongue-shaped curve: Represents the entirety of colors perceivable by the average human eye. Points along the curve represent pure monochromatic wavelengths of light.
  • Triangle: Represents the boundaries of the specific color gamut selected in your project settings (e.g., Rec.709). All colors within this triangle can be accurately reproduced within that standard.
  • Trace: Your image pixels plot onto this diagram. For colors to be "legal" or "in gamut," the entire trace must fall within the triangle's boundaries. If the trace extends beyond, colors are out of gamut and will be clipped on compatible displays.
  • Small dot near center: Indicates the reference white point (e.g., D65 for Rec.709), defining the color temperature of pure white.
• CIE Scope Controls:
  • Diagram Type: Choose between CIE 1931 XY and CIE 1976 UV (the 1931 is the most common industry reference).
  • Show Second Gamut: Display a second gamut triangle for comparison.
  • 2x Zoom: Magnifies the view for a closer look.



4 Common Mistakes All Beginners Make With Scopes [20:15]

• 1. Trying to make everything perfect: Not every image needs to use the full tonal range. A foggy scene should have compressed contrast; a night scene should be predominantly dark. Scopes show "what is," not "what should be" aesthetically.
• 2. Ignoring the image while watching the scopes: Scopes are tools for objective technical decisions, but always verify the aesthetic result with your eyes. It's a partnership between technical accuracy and visual appeal.
• 3. Misunderstanding parade alignment: When using the parade for white balance, the goal is to align the neutral points (grays, whites, blacks), not to make all colors equal. A sunset correctly has an elevated red channel.
• 4. Over-relying on one scope: Each scope reveals a different aspect of the image. Use the right tool for the right job (e.g., vectorscope for saturation, waveform for contrast) and use multiple scopes to verify your decisions, building confidence in technically sound creative choices.

How to Access Scopes in Fusion [21:37]

While significant color work isn't typically done in Fusion, scopes can be useful for compositing tasks like screen replacements or green screen backgrounds.

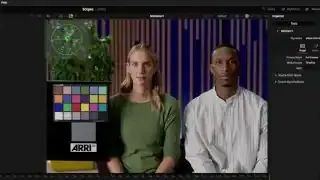

• Accessing Scopes as Overlays: Even if undocked scopes vanish when switching to Fusion, you can access simplified versions (histogram, waveform, vectorscope) directly from the overlays button at the top of the Fusion viewer.
• Manipulation: These overlay scopes can be resized by dragging the bottom-right corner and repositioned by moving the mouse to the top until it becomes a crosshair.
• Advanced Setup: For a larger view, you can load the media out node in both Fusion viewers, making the scope huge in one while maintaining the full image in the other.
