How Corridor Crew Solved the Green Screen Chroma Key Transparency Problem with AI
Summary:
Corridor Crew VFX artist Niko addresses the persistent challenges of green screen keying, particularly the "transparency problem" that has plagued filmmakers for decades.
- Green Screen Limitations: Traditional chroma keying struggles with semi-transparent objects, hair, motion blur, and spill, making the process tedious and imperfect.
- Historical Solutions: Early film techniques involved physical film manipulation, while Disney developed a proprietary sodium vapor process for perfect mathematical cutouts.
- The AI Approach: Niko proposes using neural networks to automatically and perfectly cut subjects from green screens. This involves training an AI with a massive dataset of 3D rendered green screen footage and corresponding transparent masks.
- Procedural Generation: To overcome the need for 10,000+ clips, the team uses procedural generation in Houdini and Blender to create diverse synthetic datasets with varied objects, lighting, and materials, ensuring mathematical precision.
- Testing and Refinement: Initial results with the AI model showed promise but struggled with green fringe on semi-transparent areas. Niko refined the training by compositing predicted outputs onto random and gray backgrounds, forcing the model to unmix background colors perfectly.
- Success and Release: The improved AI, named "Corridor Key," successfully tackled difficult green screen shots, including hair, motion blur, and reflective/transparent objects, producing world-class keys with minimal human intervention. The tool, which requires high VRAM, is released open-source and free for non-commercial use.
Niko and the team review the successful AI-keyed footage. [ 00:22:49 ]
The Inherent Problems with Green Screens [0:00]
Green screens, while foundational for visual effects, often present significant challenges, making the VFX process more arduous than enjoyable.
The "Suckiness" of Green Screens [0:00]
- Green screens are rarely perfect, leading to constant adjustments.
- They are used to replace backgrounds, enabling complex cinematic creations like those in "The Avengers."
- However, in practice, achieving a perfect key (cutting out the subject) is rare, happening only about 1% of the time, leading to frustrating and time-consuming manual fixes.
- The team's previous experience with hundreds of green screen shots for "Son of a Dungeon" highlighted the soul-crushing nature of imperfect keys.

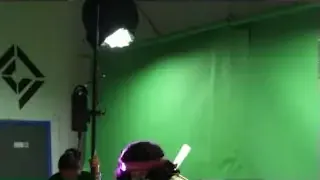

A green screen setup with uneven lighting and shadows, illustrating a common problem. [ 00:00:30 ]
The Fundamental Transparency Problem [1:15]
- Cameras cannot directly film transparency; they record black when nothing is present.
- This necessitates a "cutting" process to isolate subjects from their backgrounds to create composites.
- This cutting is frame-by-frame, totaling hundreds of thousands of individual pictures for a feature film.
Historical Solutions to Transparency [2:29]
Early Film Techniques: Transparency Mats [2:29]
- Filmmakers used physical film where exposed silver crystals would stick, and unexposed ones were washed off, creating actual transparent areas.
- This allowed for layering film, but it was limited to black and white values, making fuzzy edges or transparent materials impossible.

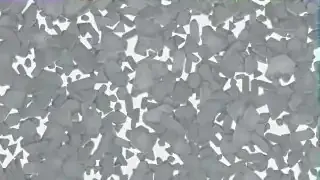

An image illustrating the chemical process of film development, where exposed crystals stick and others are washed off to create transparency. [ 00:02:40 ]
Color Film: Blue Screen and Optical Printers [3:00]
- For color films like "Star Wars," artists had to split individual color channels (red, green, blue).
- By shooting on a blue background, the blue channel could be isolated to create a black-and-white mat of the subject.
- This laborious process involved optical printers and extensive filtering and recombining.
- A significant drawback was that any blue in the subject would also be cut out.
Actors and a model spaceship against a blue screen, showing the setup for early chroma keying in "Star Wars." [ 00:03:20 ]
Disney's Proprietary Sodium Vapor Process [4:10]
- Petro Vahos developed a method using sodium vapor light, which emits light within a tiny, specific wavelength.
- This allowed for lighting the background with sodium vapor while the subject was lit normally.
- A custom crystal in the camera would expose two pieces of film simultaneously: one for the sodium vapor backdrop and one for all other light.
- This yielded mathematically perfect cutouts, preserving semi-transparent details.
- However, this technology was exclusive to Disney.

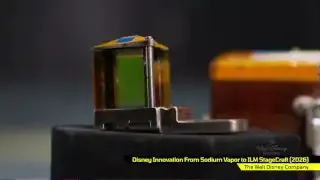

A custom magic crystal used in the sodium vapor process, which splits light into different wavelengths for perfect keying. [ 00:04:30 ]
The Rise of Chroma Keying and Its Persistent Problems [5:00]
The Dawn of Computerized Chroma Key [5:00]
- With the advent of computers, chroma keying became accessible, allowing users to digitally select a color and make it transparent.
- Green was chosen because it contrasts well with skin tones and clothing, and digital cameras have more green pixels.
- Chroma keying converts color to luma (brightness) and chroma (color), then isolates the chroma number to make it transparent, with transparency gradually decreasing further from the selected color.
A green screen with a subject in front, demonstrating the concept of selecting a chroma value for transparency. [ 00:05:50 ]
Challenges with Chroma Keying [6:00]
- Despite its accessibility, green screen chroma keying still suffers from issues:
- Motion Blur: Difficult to key clean edges with fast movement.
- Semi-transparent/Refractive Objects: Challenges in accurately preserving the transparency or refractive properties of objects like glass.
- Hair: Fine details like individual hair strands are notoriously difficult to key cleanly, often resulting in "green fringe."
- Green Spill: When green light from the screen reflects onto the subject, it creates a green tint that is hard to remove without affecting desired colors.
- These problems necessitate time-consuming manual "rotoscoping" (frame-by-frame cutting), which is not the enjoyable part of VFX.
- Despite its accessibility, green screen chroma keying still suffers from issues:
Niko's Vision for an AI-Powered Solution [7:08]
The Need for a New Tool [7:08]
- The "Son of a Dungeon" project requires hundreds of green screen shots, and existing tools are insufficient for professional-level quality without extensive manual work.
- Current AI rotoscoping tools (e.g., phone apps) lack the precision needed for professional visual effects, struggling with transparency, consistent edges, and fine details like hair.
- The core problem: AI programs don't "unmix" background colors from foreground colors in semi-transparent areas, leading to color contamination (e.g., a red gel in front of a blue screen appearing purple after keying).
- Most AI tools are developed by programmers, not VFX artists, leading to a gap in understanding practical VFX needs.
Niko explains the problem of AI roto tools failing to intelligently unmix background colors from semi-transparent foregrounds. [ 00:08:40 ]
The Neural Network Approach [10:10]
- Niko proposes using a neural network trained to recognize patterns in green screen footage, distinguishing foreground from background like the human brain.
- The network needs thousands of mathematically perfect examples (input images and their corresponding "ground truth" transparent and foreground images) to learn to accurately predict cutouts.
- Challenges: Niko has no prior experience training neural networks, and acquiring 10,000+ perfectly keyed clips is an immense task.
Procedural Generation for Training Data [12:25]
- Overcoming Data Limitations [12:25]
- To generate the vast amount of mathematically perfect training data, the team leverages procedural generation, primarily using Houdini and Blender.
- This allows for automatically creating diverse 3D rendered scenes with various objects, lighting environments, materials, and parameters.
- Interns Shane and Lucas contribute by developing Blender-based procedural systems for characters and hair, complementing Jordan Allen's Houdini work on hard-edged objects.
- This collaborative effort creates a "dedicated wing of machines" constantly generating renders for Niko's AI.

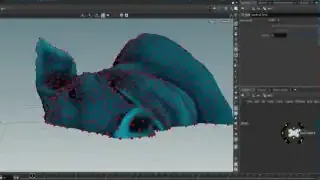

Jordan Allen demonstrating procedural generation in Houdini, showing how changing an input model automatically applies all subsequent effects. [ 00:13:00 ]

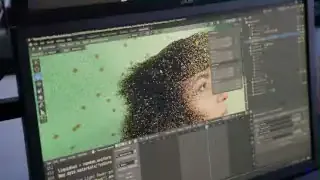

A procedural system in Blender generating complex hair simulations over a green screen background. [ 00:14:30 ]
Initial Results and Iterative Refinement [15:12]
First Test Results [15:12]
- After initial training with a limited dataset, Niko tests the AI on a low-resolution, compressed green screen clip of a "Viking" swinging a sword, featuring common problems like reflective objects, motion blur, and hair.
- The AI showed a "decent job" but still resembled an AI rotoscope, not meeting the "Son of a Dungeon" professional quality standard. Sam humorously described it as "going on the fridge, but not on the wall," meaning it's a good first attempt but not production-ready.
Sam providing feedback on the initial AI key, noting its decent but not production-ready quality. [ 00:16:09 ]
Addressing the Green Fringe Problem [17:06]
- Niko realized the limited dataset (200 clips) was a major bottleneck.
- He devised a "big idea" to make the dataset "theoretically infinite" by dynamically changing hue, saturation, and brightness of existing rendered elements and recombining them.
- He then further refined the training by forcing the model to "unmix" background colors more perfectly:
- Compositing predicted outputs onto random colored backgrounds: This highlights any remaining green pixels, forcing the AI to eliminate them for all backgrounds.
- Compositing onto gray backgrounds: This reveals any color tint in the fringe, ensuring the unmixing process is complete and truly colorless.

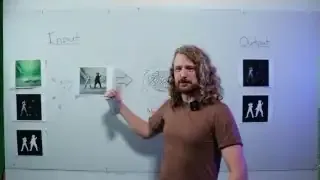

Niko explaining how to make the dataset theoretically infinite by dynamically changing parameters like hue, saturation, and brightness of rendered elements. [ 00:17:29 ]

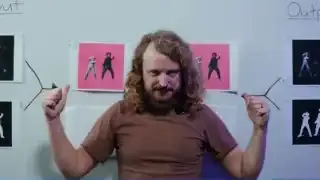

Diagram illustrating the improved training method, where predicted outputs are tested against random colored backgrounds to highlight green pixels, forcing the model to learn perfect unmixing. [ 00:19:29 ]
The Success of Corridor Key [19:54]
"Son of a Dungeon" Timeline [19:54]
- With Season 3 of "Son of a Dungeon" approaching, the new tool needed to be ready for production-level compositing within weeks.
- Niko reflects on his 30-year journey with green screens, from high school dreams of "Star Wars" effects to the continued frustration with imperfect tools.
Demonstration to the Crew [21:49]
- Niko presented the refined Corridor Key to the Corridor Crew, starting with the original "Viking" test footage.
- He then revealed that the "original" footage shown moments earlier (featuring difficult green screen elements like hair, motion blur, and semi-transparent objects) was actually already processed by the AI.
- The crew was shocked and impressed by the seamless keys, especially with challenging elements like hair, motion blur, and transparent/reflective objects (e.g., water in a glass).
The Corridor Crew reacts with amazement as Niko reveals that the "original" challenging green screen shots they just saw were already perfectly keyed by his AI. [ 00:22:49 ]
A crew member expressing awe at the AI's ability to perfectly key a transparent glass of water, including the water's refraction. [ 00:24:09 ]
Sam's Approval and Final Product [25:27]
- Sam, the head of the "Son of a Dungeon" pipeline, was "in shock" and called the results "magic" and "world-class keys."
- Niko demonstrated the full pipeline:
- Alpha Hint: Auto-generated clean mask of the subject.
- FG (Foreground): A straight, unmixed, 100% opaque color version of the subject, impossible to capture directly with a camera.
- Matte: A black-and-white transparency map.
- Processed (EXR): The final, professionally keyed output, ready for compositing.
- The processed output seamlessly removed tracking markers, eliminated green spill, and preserved intricate details like hair and chain mail transparency.
- When composited into After Effects with a background, the results were "better than any key I've ever pulled."

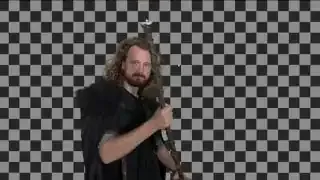

The final processed output of Niko, the "wise wizard," with a perfectly keyed background and staff, demonstrating the AI's precision. [ 00:26:49 ]

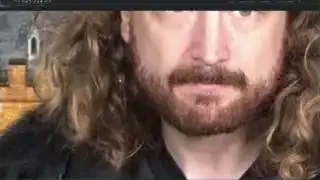

A zoomed-in view of the keyed subject in After Effects, highlighting the impeccable edge quality and lack of green spill. [ 00:27:09 ]

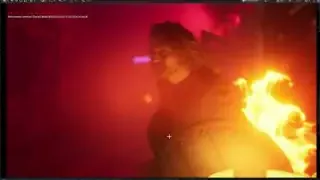

A dynamic shot of the keyed subject within an Unreal Engine environment, demonstrating real-time lighting and integration into a full VFX scene. [ 00:29:09 ]
Accessibility and Future of Corridor Key [29:18]
- Open-Source Release [29:18]
- Niko released "Corridor Key" as an open-source tool on GitHub, allowing anyone to use it for free for non-commercial purposes.
- The tool currently requires high VRAM (23.9 GB), accessible on high-end gaming GPUs or via rented hyper-powerful computers.
- The hope is that the open-source community will help optimize it for wider accessibility.
- Comparison to Sodium Vapor: While Corridor Key performs exceptionally well, it's noted that sodium vapor keying is still arguably the "best matting system," though Corridor Key is a significant leap for digital methods.
- Community Engagement: Users are encouraged to contribute to the project on Discord and share feedback.
