NVIDIA DGX Spark Review: Comparing the Palm-Sized AI Supercomputer to a Dual RTX 4090 Server

NetworkChuck

Summary:

The NVIDIA DGX Spark is a compact AI supercomputer featuring a GB10 Grace Blackwell Superchip, a 20-core ARM processor, 1 PetaFLOP of AI compute, and 128GB of unified LPDDR5X memory.

While a custom dual RTX 4090 server ("Terry") outperformed the DGX Spark ("Larry") in raw LLM inference and image generation (e.g., 132 tokens/second vs. 36 tokens/second for a small LLM), the Spark excels in tasks requiring more VRAM, such as running multiple large models simultaneously (e.g., a multi-agent system utilizing 89GB of VRAM) and training large LLMs (like Llama 3 70B), which Terry's 48GB VRAM couldn't handle. The DGX Spark also supports hardware-accelerated FP4 quantization for efficient model execution and enables advanced techniques like speculative decoding. Costing around $4,000 for the Founders Edition and consuming significantly less power (240W vs. 1100W for Terry), it is ideal for AI developers and fine-tuning, offering cloud-like capabilities locally with user-friendly setup via DGX OS and Nvidia Sync. Multiple DGX Sparks can be linked via a QSFP port for increased bandwidth (200 Gbps).

Introduction to NVIDIA DGX Spark and Initial Expectations [00:00:00]

• The video introduces the NVIDIA DGX Spark, a compact AI supercomputer.
  • It is touted as a device that can fit in the palm of a hand.
  • Initial claims suggest it can run AI models that a dual RTX 4090 server cannot.
• The goal is to evaluate its specs, performance against a custom AI server ("Terry"), and practical applications with tools like ComfyUI and Open Web UI.

NVIDIA DGX Spark Specifications and Comparison to DGX1 [00:00:34]

• The DGX Spark is presented as significantly smaller than the original DGX1, which was instrumental in the early AI revolution (e.g., for ChatGPT).



  • Key Specifications:
    • Superchip: GB10 Grace Blackwell.



    • Processor: 20-core ARM.
    • GPU: Blackwell GPU with 1 PetaFLOP of AI compute.



    • Memory: 128GB of unified LPDDR5X memory.



    • Networking: 10 Gigabit Ethernet port and QSFP port.



    • Model Capacity: Capable of running up to 200 billion parameter models.



    • Cost: Approximately $4,000 for the Founders Edition with 4TB storage.



    • Power Consumption: Approximately 240W, costing around $315 annually if run 24/7.

Performance Benchmarking: Larry (DGX Spark) vs. Terry (Dual RTX 4090 Server) [00:01:26]

Large Language Model (LLM) Inference Testing [00:01:42]

• Small Model (Quinn 38B):
  • Terry (dual 4090s) achieved 132 tokens per second.
  • Larry (DGX Spark) achieved 36 tokens per second.



• Larger Model (Llama 3.3 70B):
  • Initial tests showed Terry significantly outperforming Larry, leading to a re-evaluation of the testing approach.
  • NVIDIA clarified that consumer GPUs like Terry's 4090s are faster for raw inference in smaller models, but the Spark excels in other areas.

Image Generation Testing with ComfyUI [00:04:44]

• A basic image generation pipeline was run with 20 images.
• Terry (using one GPU) completed 11 iterations per second.

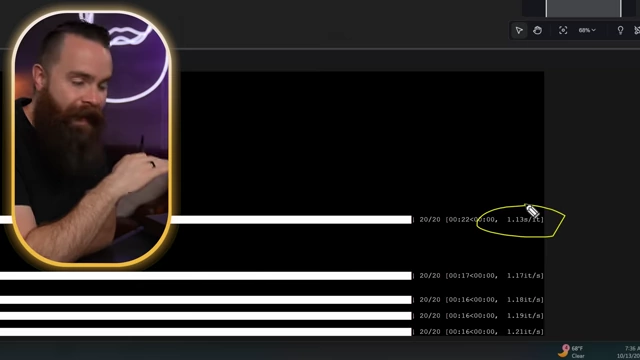

• Larry completed approximately 1 iteration per second.



• The comparison highlights that Terry, a powerful gaming machine built for AI, is faster for certain inference tasks, but the form factor and specific capabilities of Larry are its strengths.



Key Advantages of NVIDIA DGX Spark [00:03:00]

1. Unified GPU Memory (128GB) [00:03:36]

• Larry's 128GB of unified memory is shared between the CPU and GPU, allowing the GPU to access all 128GB.



• This is crucial for running larger and multiple models simultaneously.
  • Example: Running a multi-agent LLM system with GBT OSS 12B, Deep Seek Coder 6.7B, and Quinn 3 embedding 4B models, utilizing 89GB of VRAM.
• Terry's dual 4090s have 48GB of VRAM (2x 24GB), which is insufficient for loading very large models or running multiple complex models concurrently.
• The slower bus speed of system RAM on traditional servers makes it impractical for GPUs in AI workloads, emphasizing the benefit of unified memory.

2. Training and Fine-Tuning LLMs [00:07:32]

• Training AI models requires substantial VRAM, making Larry a better option than Terry for this task.
  • While Terry was faster for a small training model (1 iteration/second vs. 3 seconds/iteration for Larry), Larry's ability to load larger models is key.

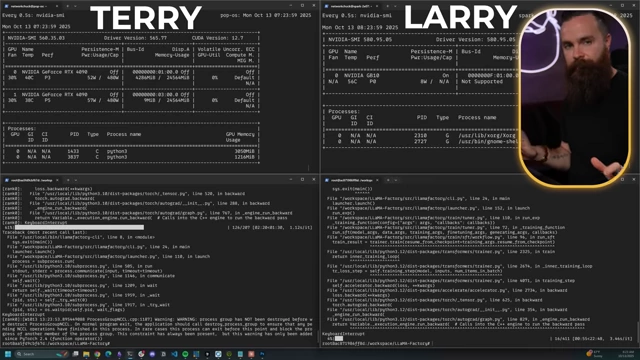

  • Terry cannot load and train large models like Llama 3 70B due to memory constraints, whereas Larry can.



• This capability eliminates the need for developers to rent expensive cloud GPUs for fine-tuning, offering a cost-effective local solution despite potentially slower speeds.

3. FP4 Quantization Support [00:12:38]

• The DGX Spark is specifically designed with hardware to efficiently run FP4 (4-bit floating point) quantized AI models.



  • Quantization reduces model size, enabling them to run on smaller devices.
  • NVIDIA provides tutorials for NVMP4 quantization, allowing for close to FP8 quality with less than 1% loss.
• Consumer GPUs like Terry perform FP4 conversion in software, which is slower.
• Speculative Decoding: Larry's hardware-accelerated FP4 support makes it ideal for speculative decoding, a technique that speeds up text generation by using a small, fast model to draft tokens, which a larger model then quickly verifies or adjusts. This reduces latency while maintaining output quality and requires running two models simultaneously, leveraging the DGX Spark's greater VRAM.

Ease of Use and Accessibility for Developers [00:09:15]

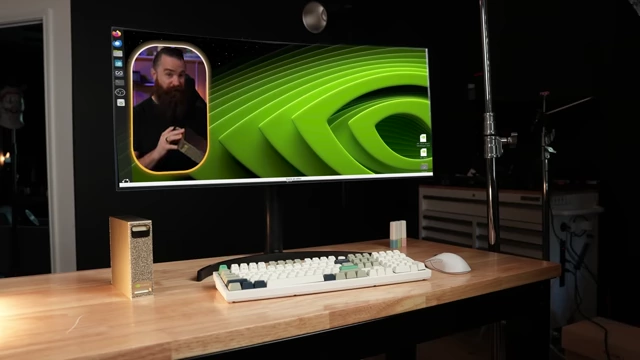

• Direct Desktop Access: The DGX Spark can be used as a standalone computer by connecting a keyboard, mouse, and monitor, running DGX OS (Ubuntu with pre-installed drivers).



• NVIDIA Sync Application: Simplifies SSH access for developers, integrating with tools like Cursor and VS Code, streamlining the workflow for local AI development.



DGX Spark Pricing and Power Consumption [00:15:26]

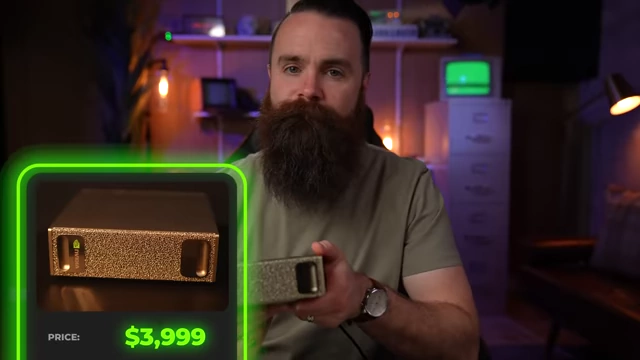

• The Founders Edition with 4TB storage costs $3,999.
• Cheaper variants from OEM partners (e.g., 2TB for ~$3,000) are expected.

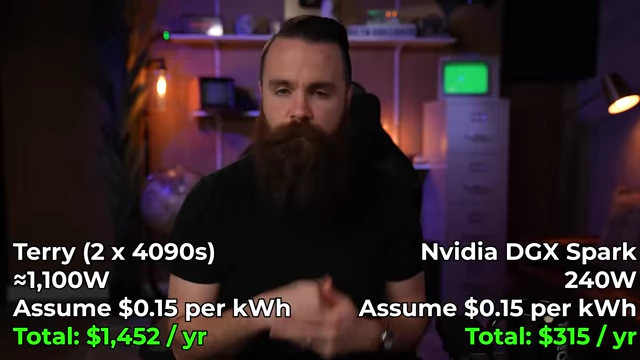

• Power Efficiency:
  • NVIDIA DGX Spark: ~240W, ~$315/year (running 24/7).
  • Terry (2 x 4090s): ~1100W, ~$1,452/year.



• The DGX Spark offers a significantly smaller footprint and lower running costs.

Comparison with Competing Devices [00:16:16]

• The video briefly mentions a Beelink device with new AMD AI chips, offering 128GB of unified memory at around $2,000.





• However, NVIDIA's ecosystem and Blackwell chips optimized for FP4 are noted as a significant advantage over AMD's AI offerings, which require more development and integration.
• The ease of setup and use of the DGX Spark is highlighted as an "Apple-like" experience, making it accessible to developers without deep DevOps or home lab expertise.

Conclusion and Target Audience [00:18:31]

• The DGX Spark is not considered a "supercomputer" in the traditional sense but rather a "mini supercomputer" due to its form factor and capabilities.
• While not offering the highest inference speeds for general consumers, its high VRAM, training capabilities, and FP4 optimization make it ideal for AI developers.
• It provides an affordable alternative to renting cloud GPUs for fine-tuning models, capable of performing similar tasks locally.
• The ability to connect multiple DGX Sparks via QSFP ports (200 Gbps) offers scalability for more complex workloads.





• The presenter expresses interest in comparing the DGX Spark to a fully maxed-out Mac Studio M3 (with 512GB unified memory) in a future video.
