The Evolution and Aesthetic Impact of Raised Panels in Woodworking and Design

Rex Krueger

Summary:

The video explores the ubiquitous "raised panel" detail found in doors, furniture, and architectural elements, which often goes unnoticed despite its prevalence. This design was initially a practical solution to "wood movement"—the natural expansion, contraction, and warping of solid wood due to changes in humidity. Early woodworking methods like nailed chests suffered from these issues, leading to the innovation of the frame and panel system. In this system, a central panel "floats" within a rigid frame, allowing it to move freely without warping the entire structure.

Historically, the edges of these panels were roughly beveled, hidden from view. Over time, woodworkers refined these bevels, leading to the "raised panel" where the smoothed, angled edges are displayed for aesthetic appeal. The final evolution, the "raised and fielded panel," adds a distinct sharp edge around the central flat area. Beyond its functional origins, the raised panel creates significant visual interest by interacting with natural light, producing a dynamic interplay of shadows and varied tones, even on monochrome surfaces like modern fiberglass doors.

The Ubiquitous "Invisible" Detail: Raised Panels [0:00]

The presenter highlights a common architectural and furniture detail, the "raised panel," which is often overlooked despite its prevalence.

• Initial observation in everyday objects [0:00]
  • Seen repeatedly on doors (front, screen, garage), shutters, and other architectural features.
  • Even present on the presenter's shop door, which he walks through daily without conscious thought.
• What is a Raised Panel? [0:31]
  • Characterized by a square or rectangular shape with beveled edges.
  • Features a sharply defined center section.
  • The entire element is enclosed within a frame.
  • It's not merely decorative; its origin is functional.

The Engineering Problem: Wood Movement [0:52]

The primary reason for the raised panel's invention was to combat the inherent instability of wood.

• Wood's natural behavior [0:52]
  • Expansion and Contraction: Wood constantly changes shape by absorbing moisture (expanding) in humid conditions and losing water (shrinking) in dry air. This occurs even in painted or sealed wood.
  • Warping: Besides changing size, wood can also warp, exhibiting:
    • Bowing along its length.
    • Crowning across its width.
    • Twisting, making ends non-parallel.
• Challenges for construction [1:23]
  • These movements make building stable, functional wooden structures difficult.

Early Solutions and Their Limitations [1:27]

One of the earliest attempts to manage wood movement involved basic nailing.

• Nailed Chests [1:29]
  • Boards were nailed together to create chests.
  • Advantage: Nails offered flexibility, allowing some movement while preventing bowing or twisting of the assembled sides.

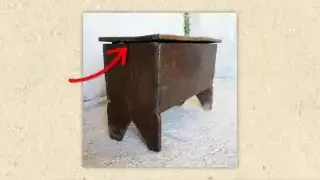

  • Limitation: Lids, often made from a single plank, were not constrained by a frame and would warp horribly over centuries, as seen in a 400-year-old chest whose lid no longer closes.
    • This demonstrates that a free-floating plank of wood will inevitably move and warp, ceasing to function effectively.



The Innovation of Frame and Panel Construction [2:06]

Early woodworkers devised a groundbreaking solution to the wood movement problem.

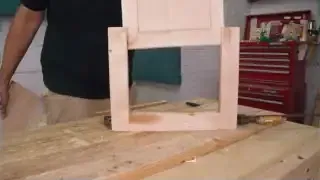

• The Basic Concept [2:14]
  • A wooden panel, slightly undersized, is placed within a larger, rigid frame.
  • The frame corners are joined and glued for stability.
  • Crucial innovation: The central panel is not attached to the frame with nails or glue; it "floats."



• Mechanism for accommodating movement [2:34]
  • A groove is routed around the inside of the frame.
  • The panel sits loosely within this groove, allowing it room to expand and contract with humidity changes.
  • The rigid frame keeps the panel flat, preventing it from bowing or twisting.
• Historical Cost-Saving [3:09]
  • Historically, nails were expensive. Using frame and panel construction eliminated the need for nails in the large panel sections, thus saving money.
  • This method also offered a more elegant and refined appearance compared to simply nailed boxes.



Evolution of the Panel Style [3:38]

The aesthetic of the panel evolved from simple necessity to decorative art.

• Flat Panels [3:39]
  • Early frame and panel designs featured flat panels with no decorative edges, as these were easiest to produce.
  • A thick panel was preferred for durability, requiring only the edge to be thinned down to fit the frame's groove.
  • Method: Woodworkers would "hack" a bevel into the edge with an axe or hand plane, as long as it was thin enough to fit. Precision was not a concern, and these rough bevels were hidden.



• Transition to Raised Panels [5:01]
  • Eventually, a woodworker began making these bevels smooth and even, with crisp corners.
  • The idea arose to "flip the panel around" to showcase these refined details.
  • This marked the introduction of the "raised panel," which provided significant visual interest with minimal additional work.
  • Raised panels became very popular in England during the 1660s, influenced by Dutch styles that favored fancier furniture.

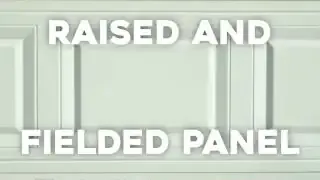

• The "Raised and Fielded Panel" [5:39]
  • The final refinement involved adding a sharp, distinct edge around the inner, flat part of the panel (called the "field").
  • This created the "raised and fielded panel," the classic design ubiquitous in Western culture.

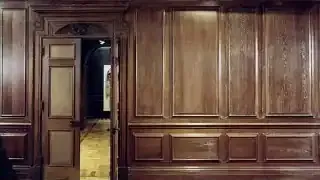

  • Examples include entire rooms paneled with these designs.



Beyond Function: The Aesthetic Power of Raised Panels [6:11]

Even in modern contexts where wood movement is less of a concern, the raised panel aesthetic persists.

• Modern Applications and Aesthetic Value [6:11]
  • Many modern doors, made of fiberglass or other non-wood materials, still mimic the raised panel design.
  • This is because the design adds a sense of class and elegance, preventing a plain, boring appearance.
• Interaction with Light [7:09]
  • Early furniture builders were masters of light and shadow.
  • The raised panel shape dramatically interacts with natural light.
  • Example: Morning light on a white garage door with raised panels reveals distinct sections and a "palette of colors" (brilliant white, cream, subtle gray, dark gray/almost black).
  • This interplay of light and shadow provides immense visual interest to an otherwise flat surface.



Learning and Future Content [8:00]

The presenter emphasizes the hidden nature and pervasive presence of raised panels, inviting viewers to notice them more.

• Pervasive but unnoticed detail [8:00]
  • Most people go their whole lives without noticing raised panels, even though they are everywhere.
  • Once seen, it's impossible to "unsee" them, and one will start noticing them everywhere.
• Upcoming Tutorial [8:27]
  • The next video will be a comprehensive tutorial on how to make raised panels in frames using accessible, low-cost hand tools, primarily a jack plane and a rabbet plane.
• Call for Audience Feedback on "Secret History of Wood" Series [4:47][8:45]
  • The presenter is considering turning this video into a series called "The Secret History of Wood."
  • He encourages viewers to leave comments if they would like to see more videos on topics like the invention of dovetails or the origin of sandpaper.
