Dillon Z. Dong: Overview of the VLA Sky Survey Transient Catalog and Future of Time-Domain Radio Astronomy

Astronomy Illinois

Introduction to Slow Radio Transients [0:01:55]

• Definition of Slow Radio Transients [0:02:25]
  • A sudden and significant (greater than 2x) increase in the radio luminosity of an astrophysical source.
  • Occurs on timescales slower than Fast Radio Bursts (FRBs), ranging from minutes to hours, and potentially decades.
• Physical Interpretation [0:02:55]
  • Gigahertz frequency changes on human timescales typically indicate energetic particles (potentially relativistic) spiraling in magnetic fields.
  • Common Mechanisms: Diffusive shock acceleration (e.g., in supernova remnants) where fast matter collides with slow matter.
  • Complex Mechanisms [0:03:41]
    • Magnetic reconnection.
    • Curvature radiation from pulsars.
    • Unidentified causes of FRBs.
• Significance [0:04:14]
  • Radio transients offer a unique window into the lives of the objects that emit them, encompassing a wide diversity of phenomena.
  • To utilize these "windows," it is crucial to find and identify these transients at scale.

History of Slow Radio Transient Detection [0:04:41]

• Early Efforts (1990s - mid-2010s) [0:04:41]
  • Decades of direct/blind detection attempts using various telescopes with repeated observations.
  • Mostly resulted in upper limits on transient rates.
• First Consistent Detections (mid-2010s) [0:05:07]
  • The Caltech-NRAO Stripe 82 survey yielded the first consistent detections (around 10 transients).
• Motivation for VLASS [0:05:18]
  • The success of early surveys, like Stripe 82, motivated the Very Large Array Sky Survey (VLASS).

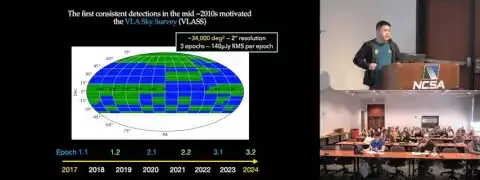

The VLA Sky Survey (VLASS) [0:05:26]

• Survey Parameters [0:05:26]
  • Covers ~34,000 square degrees of the sky (north of declination -40 degrees).
  • Observed at a frequency of 3 GHz.
  • Resolution of 2-3 arcseconds.
  • RMS noise of ~140 microjanskys per epoch.
  • Epochs: Three full epochs completed since 2017 (Epochs 1.1, 1.2, 2.1, 2.2, 3.1, 3.2).



• Discoveries to Date [0:06:02]
  • VLASS has discovered approximately 3,500 transients so far.
  • This is roughly triple the number of known non-FRB radio transients in the literature.

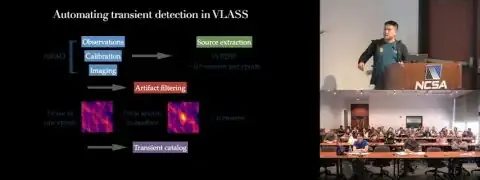

VLASS Transient Detection Pipeline [0:06:40]

• Observations (NRAO end) [0:06:47]
  • On-the-fly mapping: Dishes continuously scan in a "basket-weave" pattern.
  • Coverage: Multiples of 40 sq. degrees observed at once, with ~5 seconds of effective integration per field. This is an extremely shallow but wide-field survey.
  • VLA Configuration: Observations are always in B configuration to maximize angular resolution without overwhelming data processing capabilities.
• Data Processing (NRAO end) [0:09:13]
  • Antennas: Collect voltages.
  • Correlator: Produces raw visibilities.
  • Calibration: Standard VLA/VLASS pipeline (CASA) calibrates visibilities, resulting in ~500 GB of calibrated visibilities per 40 sq. degree tile.
  • Quicklook Imaging: Images are generated (1 sq. degree, 3722x3722 pixels, ~53 MB each), reducing data volume by ~1000x. W-projection for 3D Earth correction is not done in quicklook imaging, leading to astrometric uncertainty.
• Transient Detection (Speaker's Pipeline) [0:10:46]
  • Source Extraction: PyBDSF is used to identify potential sources from the quicklook images.
  • Artifact Filtering: PyBDSF often picks out image artifacts (sidelobes, stripes) which need to be separated from genuine point sources.
  • Gaussian Fitting Heuristic: A 2D Gaussian is force-fitted to source candidates, and residuals are checked for cleanliness (Shapiro-Wilk test for Gaussianity and standard deviation of residuals). This method is ~99% successful in distinguishing real sources from artifacts.



  • Automated Detection: Looking for sources that appear as noise in one epoch and a significant point source (e.g., >5 Sigma) in another.
  • Time Interval: Epochs are separated by approximately 2.5 years.
  • Focus: Primarily identifies "transients" (appearing/disappearing) rather than continuous "variables" (always present but changing flux), as large variability is less prone to systematic errors.



Transient Identification [0:18:35]

• Limited Information: Each transient initially provides only flux, RA, Dec, and time.
• Contextual Information (Multi-wavelength Surveys) [0:19:02]
  • Transient Counterparts: Cross-matching with transient name servers (e.g., TNS) reveals known supernovae (e.g., Type 1C Broadline Supernova, Classical Nova) that are radio counterparts.
  • Host Object ID: Using existing techniques from galaxy studies (e.g., differentiating quasars, galaxies, stars via SDSS data) to identify host objects.
  • Spectroscopic Coverage: Bright sources in surveys like SDSS often have spectra, providing redshifts (e.g., Redshift 3 Quasar) or characteristics of star-forming galaxies, which indicate stellar explosions.
• Intrinsic Properties (Radio Features) [0:20:55]
  • Spectral Structure: Requires access to visibilities, not just images. Allows for the detection of features like diffractive scintillation, indicative of compact objects (e.g., pulsars).
  • Polarization: Analyzing Stokes V (circular polarization) can reveal highly polarized stars (e.g., electron cyclotron maser emission from M dwarfs).
• Efficient Crossmatching (Mechanics) [0:23:29]
  • Local Processing: For large catalogs (e.g., Gaia with 1.5 billion entries), downloading the entire catalog and performing local cross-matching is often more efficient than ADQL queries.
  • Optimizations:
    • Sharding by healpix: Divides the sky into equal-area pixels for parallel I/O.
    • Precomputed Spatial Trees: Turns cross-matching into an O(log N) problem.
    • Asynchronous I/O: Improves data loading efficiency, which is often the primary bottleneck.
  • Statistical Significance: Measuring false alarm rates by cross-matching with isotropic random points helps establish trustworthy associations, especially for close offsets and nearby objects (e.g., Gaia stars).



  • Physical Meaningfulness:

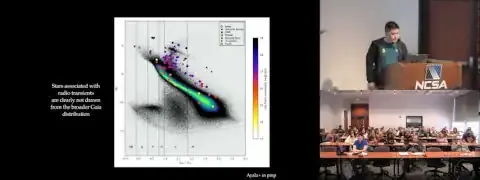

    • Stars: Radio transients associated with stars are not randomly distributed but are predominantly above the main sequence, indicating pre-main sequence stars or stars evolving off the main sequence with strong magnetic fields.

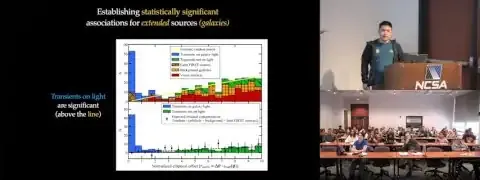

    • Galaxies: Transients on the "light" (visible emission) of galaxies are statistically significant, with those in red-and-dead galaxies often found in the nucleus (likely related to central black holes), and those in blue star-forming galaxies being off-nuclear (likely stellar explosions).





Notable Transient Populations in VLASS Catalog [0:32:42]

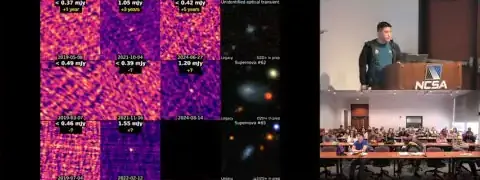

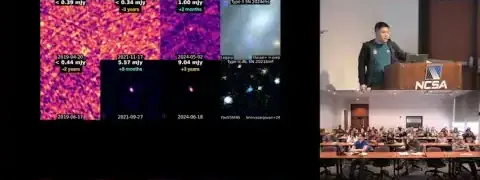

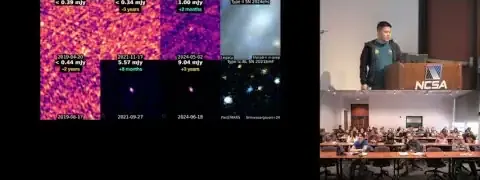

Stellar Explosions [0:32:49]

• Discoveries: VLASS has found ~90 stellar explosions, equivalent to the total number of known radio supernovae previously.
• Limits: Provides limits on over 20,000 known supernovae on timescales of 1-7 years.
• Rate: Accounts for less than 1% of the volumetric core-collapse rate.
• Examples: Includes recent Type II supernovae, continuously brightening Type 1C Broadline supernovae (some detected 7 years post-explosion), and unidentified optical transients in star-forming galaxies.
• Physical Interpretation: Many radio-luminous explosions result from dense circumstellar medium (CSM) interaction, pointing to binary mass transfer (unstable Roche lobe overflow, wind Roche lobe overflow) or compact object-massive star mergers.

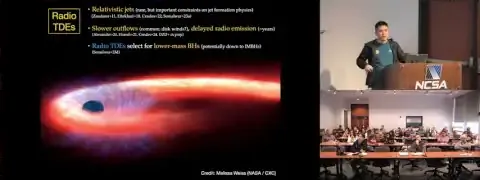

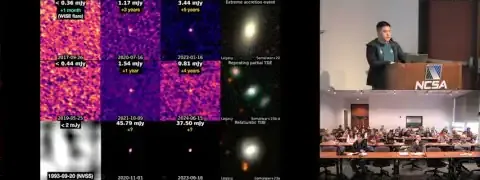

Radio Tidal Disruption Events (TDEs) [0:38:28]

• Coincidence: ~1500 transients are coincident with galaxy nuclei.
• AGN Indicators: A notable fraction show no strong AGN indicators (e.g., via WISE colors or spectra).
• Consistency: Consistent with TDEs, but better classification frameworks and/or more data are needed.
• Observation Pattern: TDEs tend to appear years after the optical event, aligning with systematic follow-up of optically selected TDEs.
• Physical Interpretation: Most radio TDEs are not jetted, but show slower outflows (disk winds, delayed radio emission). Radio TDEs may preferentially select for lower-mass black holes.

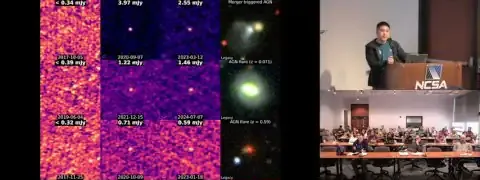

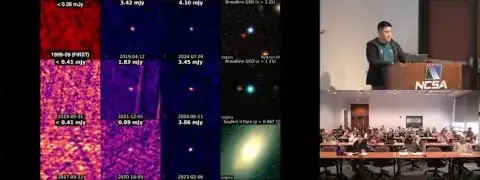

AGN Transients [0:40:58]

• Diversity: Sharp accretion changes, new jets, slower outflows, jet reorientation, and stellar explosions in AGN disks.
• Examples: Quasars (up to redshift 4), more nearby AGNs, some exhibiting stacked emission from the transient.

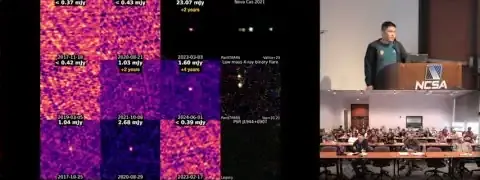

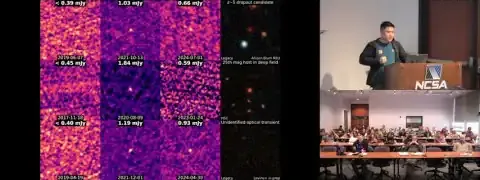

• Hostless Transients: Over 1000 VLASS transients are hostless or have faint hosts (>23rd magnitude). Deep NIR imaging often reveals JWST-like faint red dots.
• Interpretations: Could be AGN activity from dusty, faint, or higher-redshift galaxies, or Galactic compact objects (e.g., low-mass X-ray binary flares, pulsars).









• Compact Objects: The Milky Way contains ~10^8 compact objects, with ~500-600 ATNF pulsars detected in VLASS. Diffractive scintillation may be used to identify new pulsars.

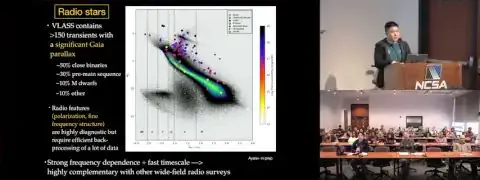

Radio Stars [0:45:15]

• Recent Research: A surge of discoveries from new-generation radio surveys (e.g., ASKAP).
• VLASS Discoveries: Over 150 transients with significant Gaia parallax, including:
  • ~50% close binaries.
  • ~30% pre-main sequence stars.
  • ~10% M dwarfs.
• Characteristics: Strongly frequency-dependent and fast timescales. Polarization fraction is diagnostic of emission mechanism.
• Implications: Reveals insights into magnetic activity in stars, complementing other wide-field radio surveys.



Scaling Up Time-Domain Radio Astronomy [0:46:52]

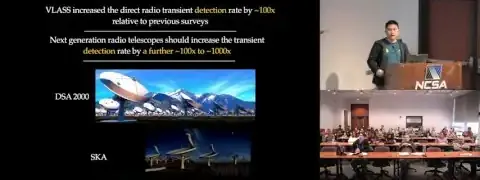

• Increased Detection Rates: VLASS increased slow radio transient detection by ~100x. Next-generation telescopes (DSA-2000, SKA) are expected to increase this by another 100-1000x.



• Data Volume and Complexity:
  • Huge data streams from new facilities (Rubin/LSST, DESI, SPHEREx).
  • Complicated cross-matching problems for poorly localized multi-messenger counterparts (LIGO, IceCube).
• Bottlenecks and Solutions:

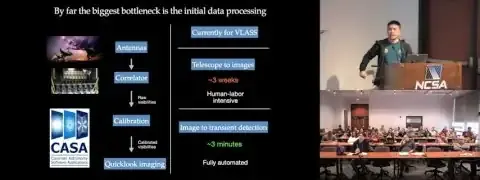

  • Initial Data Processing: Currently takes ~3 weeks for VLASS (telescope to images).

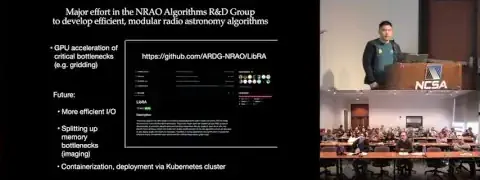

    • NRAO Algorithms R&D Group (LIBRA): Developing efficient, modular algorithms with GPU acceleration (e.g., for gridding).
    • Future: More efficient I/O, splitting memory bottlenecks (imaging), containerization via Kubernetes.

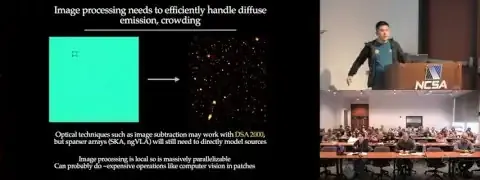

  • Image Processing: Future surveys like DSA-2000 will produce crowded images, requiring advanced techniques like computer vision in patches (image subtraction may not work for sparse arrays like SKA/ngVLA due to varying UV coverage).
  • Crossmatching: Already close to real-time streamable but requires:
    • Pre-indexed/precomputed spatial trees for reference catalogs.
    • Periodically rebalanced trees for growing catalogs.
    • Sharding data for I/O efficiency and parallelization.



• Data Access for General Astronomers [0:51:19]
  • Biggest Area of Improvement: Making data accessible so astronomers can focus on scientific interpretation rather than tool mastery.
  • Solutions: Wrappers on top of APIs/VO protocols, Graphical User Interfaces (GUIs) instead of ADQL queries, or AI-generated queries.

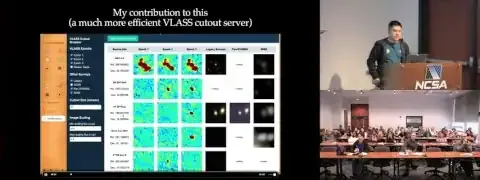

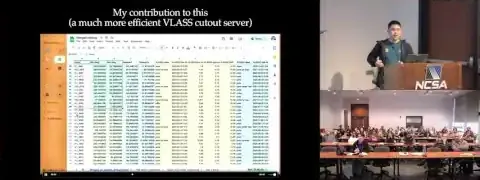

  • Speaker's Contribution: Development of a more efficient VLASS cutout server, reducing access time from minutes to milliseconds, and extensible to the entire NRAO data archive.
