Understanding and Applying Color Balance in DaVinci Resolve: Why Temp & Tint Controls Are Not Ideal

Cullen Kelly

Evaluating Temp & Tint for White Balance in DaVinci Resolve [00:00]

The video addresses the common perception that Temp & Tint controls are the go-to for white balance in DaVinci Resolve, despite the software offering three different sets of these controls. The speaker argues that none of these are ideal for achieving consistent, accurate, and fast color balancing.

The Problem with Camera RAW Temp & Tint [00:40]

The Camera RAW tab provides Temp & Tint sliders that are designed to mirror in-camera white balance adjustments.

• The promise: These controls offer a photometric camera-type adjustment, similar to what a cinematographer would do on set.
• The fundamental issue:
  • These are not true color grading tools because they are only applicable to RAW footage, not all image types.
  • Using them forces colorists to maintain a "camera-centric" frame of mind, which is counterproductive to an "image-centric" approach in grading.
  • It prevents the development of a consistent color grading toolkit that works universally regardless of the camera source.
• The results can be good, but a more consistent and equally accurate color grading tool exists within Resolve.

The Problem with Primaries Tab Temp & Tint [03:32]

The Temp & Tint controls in the Primaries tab are often intuitively used due to their familiarity and apparent simplicity.

• Initial appeal: The speaker admits to having been "addicted" to these, finding them seemingly accurate and simplifying the thought process to merely cool/warm or green/magenta.
• The core issue:
  • These controls lack a firm, accurate color science backing. They represent an arbitrary mixture of red and green (for temperature) or green and blue (for tint).
  • Their calibration was based on the assumption of grading a "display state" image, not a "log state" image, which is the standard professional color grading workflow using color management.
  • This creates a "double whammy" of inaccuracy: the controls are arbitrary to begin with, and their behavior is further misaligned when applied to log-state images.

The Problem with HDR Tab Temp & Tint [06:20]

The HDR tab's Temp & Tint controls are a newer addition, with a more sophisticated design intent.

• Improved concept: These controls aim to provide a more photometric color temperature adjustment, similar in concept to Camera RAW adjustments.
• Limitations in application:
  • The adjustment range provided is often insufficient for significant corrections (e.g., a 4000-degree Kelvin change may not feel substantial).
  • The actual behavior of the tool is not very accurate, despite the intent.
• Understanding inaccuracy: The "spectral locus" (the axis of color temperature) is not uniform; the effect of a given Kelvin change varies depending on the starting color temperature.
  • Example 1: Changing from 5500K to 3500K (a 2000K difference).
  • Example 2: Changing from 6500K to 4500K (also a 2000K difference).
  • The visual results for these two scenarios, despite the same Kelvin difference, are notably distinct [00:11:27]. This demonstrates that a single temperature knob cannot accurately account for the variable spectral locus without knowing the starting point.
  • The HDR temp knob, therefore, makes an arbitrary assumption about the starting point, compromising its accuracy.
  • Using an accurate tool like Chromatic Adaptation (which requires inputting both source and target Kelvin) would be too laborious for common grading tasks.

The "Best Tool" for Specific White Balance Corrections: Chromatic Adaptation [09:07]

• When to use: In the minority of cases where precise numerical information about the light source and camera's white balance setting is known (e.g., 5500K light source, camera rated for 3500K).
• How it works: DaVinci Resolve's "Chromatic Adaptation" effect can be applied to a node, allowing the user to specify the "illuminant type" (e.g., color temperature Kelvin for both source and target).
  • This tool leverages color science to accurately account for the known difference between the light source and camera's white balance.
  • It offers the most accurate, color science-backed adjustment for such specific scenarios.
• Practicality: This tool is not a general go-to because most of the time, precise numerical information isn't available, and manually entering values for every adjustment would be too slow and cumbersome.

Recommended Approach for General Color Balance (90% of the Time) [14:00]

For the vast majority of balancing tasks where precise numerical values are unknown, a more intuitive and flexible method is recommended.

• The "image-centric" mentality: The goal is simply to make the image look right to the eye.

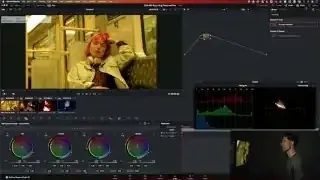

• Recommended tool: Use the "Gain" color wheel in the Primaries tab.
  • Set the gamma of the node to "linear" for more natural and predictable color adjustments, as this operates in the domain of physical light.
  • Adjust the single color wheel freely, guided by visual perception.
• Advantages: This method is quick, consistent, effective, and free from the constraints and inaccuracies of the Temp & Tint sliders. It acknowledges that, ultimately, balancing is an eye-driven process.

A Model for Thinking About Color Balance Adjustments [15:29]

Regardless of the tool, adopting a simplified mental model can enhance balancing.

• Two key axes:
  1. The skin tone line (representing the temperature axis, from cool to warm).
  2. The green/magenta axis (perpendicular to the skin tone line).
• Simplified thinking: Instead of seeking a "perfect" position in a complex color space, think about where the image should "park" along these two primary axes.
• Benefit: This mental framework, initially cultivated by the speaker during his "addiction" to Temp & Tint, can be applied to freehand adjustments with the Gain control, providing grounding and orientation without being tied to inaccurate tool behaviors.
