The Chuo Shinkansen: Japan's $85 Billion Superconducting Maglev Train Accelerates to 500 km/h Between Tokyo and Osaka

Looking 4

Introduction [00:00]

The Chuo Shinkansen project represents Japan's latest groundbreaking development in transportation, aiming to redefine high-speed rail.

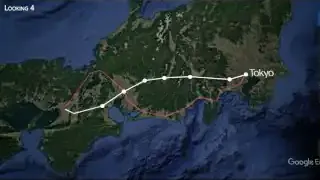

• This ambitious undertaking will initially connect Tokyo to Nagoya and eventually extend to Osaka.
  • The train is designed to cover the approximately 500-kilometer distance in less than half the time of existing high-speed trains.
  • Upon completion, it will become the world's fastest commercial train, reaching speeds of 500 km/h.

History of Japanese High-Speed Rail [01:20]

Japan has been a pioneer in high-speed rail since the 1960s, consistently pushing the boundaries of transportation technology.

• Early Innovations [1964] [01:29]
  • The historic Tokaido Shinkansen, which debuted in 1964, was the world's first true high-speed rail, carrying passengers at 210 km/h.
    • Its success prompted Japan to explore "next-generation transport methods," leading to the development of superconducting magnetic levitation (SCMaglev).
  • In 1979, Japan's ML500 train achieved a staggering 517 km/h on the Miyazaki test track, setting a new world record.
• SCMaglev Technology [02:11]
  • Japan's dominance in high-speed rail during this period stemmed from its use of superconducting magnets.
    • These magnets are cooled to an extreme -269°C using liquid helium, harnessing the Meissner effect.
    • This supercooling induces currents in guideway coils, creating repulsive lift and lateral stability, allowing the train to float a full 10 cm above the track.
      • This increased levitation significantly enhances speed capabilities beyond conventional electromagnetic suspension.
• Continued Speed Records [03:48]
  • Over several decades, Shinkansen trains incrementally increased their speeds, reaching 320 km/h by the early 2010s.
  • SCMaglev prototypes continued to set new records:
    • MLX01 prototype achieved 531 km/h in 1997 on the Yamanashi Maglev test line.
    • The same MLX01 reached 552 km/h less than two years later.
    • In December 2003, MLX01 hit 581 km/h, setting a world record for all trains.
    • In April 2015, the successor, the L0 series, reached 590 km/h, then 603 km/h just a week later.
      • This 603 km/h record, achieved with 49 engineers aboard, still stands today and is roughly half the speed of sound.

The Current Landscape [04:06]

Despite Japan's pioneering role and record-breaking test speeds, its commercial high-speed rail network is currently outpaced by other nations in certain aspects.

• Japan's existing Shinkansen lines typically reach peak speeds of 320 km/h.
• Currently, China's CR450, designed for 400 km/h, holds the title for the fastest commercial railway.
• Japan is tied with France, whose TGV line also reaches 320 km/h.
• The Chuo Shinkansen project, with its focus on SCMaglev, aims to reclaim Japan's position as the leader in commercial high-speed rail.



The Logistics of Going 500 km/h [07:17]

Implementing a commercial train system at 500 km/h involves significant engineering, financial, and environmental considerations.

• Project Cost and Funding [07:18]
  • The Central Japan Railway Company (JR Central) first announced the Chuo Shinkansen in 2007, projecting a cost of 5.1 trillion yen (approx. $45-50 billion USD).
  • By 2011, the estimate was adjusted to 9 trillion yen, equivalent to about $85 billion USD today.
  • JR Central initially planned to self-finance but accepted 3 trillion yen in ultra-low interest government loans in 2016 to accelerate the project.
• Extensive Tunnels [08:00]
  • The Chuo Shinkansen line will feature an extraordinary number of tunnels.

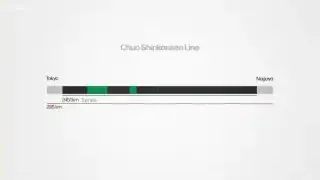

    • 86% of the 285 km Tokyo to Nagoya section will be underground.
    • The full Tokyo to Osaka line (approx. 500 km) will still be 80% tunnels.
    • Some alpine tunnels will stretch up to 25 km long.
  • Reasons for extensive tunneling:
    • Straightness Requirement: The trains require a minimum curve radius of 8,000 meters, one of the widest for a commercial railway, necessitating direct routes through urban areas and mountains.
    • Protection: Tunnels protect the railway from adverse weather conditions and enhance earthquake resilience.
    • Affordability: Building underground is more cost-effective than acquiring expensive land in densely populated regions.
• Noise Management [09:28]
  • While the L0 series trains are 100% electric and use magnetic levitation, making the onboard experience quiet and smooth, external noise is a major concern.
    • The trains' enormous mass (around 300 metric tons) creates powerful pressure waves when traveling at 500 km/h.
    • Tests indicate external noise levels of 95-100 dB, comparable to a low-flying jet, which can cause hearing damage and be startling for pedestrians.
    • To mitigate this, trains must reach their maximum speeds underground, away from populated areas.



Construction [10:58]

The construction of the Chuo Shinkansen is an immense engineering challenge, facing significant timelines, safety incidents, and local opposition.

• Timeline and Delays [10:59]
  • The original construction timeline (set in 2013) aimed for the Tokyo-Nagoya section to be completed by 2027.
  • The Osaka section was initially slated for completion in 2045.
  • Government low-interest loans in 2016 allowed the Osaka completion date to be brought forward to 2037.
• Key Construction Milestones [11:36]
  • Work began in 2015, focusing heavily on tunneling.
    • Initial tunneling included a 7 km tunnel across Yamanashi and Shizuoka prefectures.
    • A 25 km mega-tunnel, which will be Japan's deepest at 1,300 meters below ground, also commenced construction.
  • In 2016, construction started on the maglev station in Shinagawa, Tokyo.
• Shizuoka Prefecture Dispute [12:20]
  • The project experienced its first fatal accident in 2021 when a rock collapse in a tunnel killed one worker and injured another.
  • A long-standing controversy involves the Shizuoka Prefecture, which opposes an 8.9 km tunnel section through the Southern Alps.
    • The prefecture's main concern is the potential diversion of water from the Oi River watershed, threatening local agriculture, industry, and municipal water supply.
    • An expert panel in 2020 concluded that the environmental impact would be minimal, but the Shizuoka government criticized the report as "insufficient and hasty."
    • This unresolved dispute poses a serious threat to the timely completion of the Tokyo-Nagoya section by 2027.



Expected Impact [16:30]

The Chuo Shinkansen is projected to have a profound impact on Japan's society, economy, and global standing in transportation.

• Infrastructure and Connectivity [16:36]
  • The railway will feature nine stations in total, many of which will be expansions of existing stations to facilitate seamless connections with Japan's extensive public transportation system.
  • The predominantly underground nature means the line will largely operate "behind the scenes," acting as a deep artery beneath the country's visible surface.
  • The journey from Shinagawa (Tokyo) to Nagoya will take less than an hour, and an express service will complete the 270 km trip in just 40 minutes, creating a sensation akin to "teleporting."
• Passenger Experience [14:38]
  • Test riders describe the onboard sensation as similar to an airplane at cruising altitude, characterized by stability and silence.
  • Cabin pressure will automatically adjust in tunnels to prevent discomfort like popping ears.
  • Interiors are expected to feature reclining 2x2 seats, wider and with more legroom than economy airplane seating.
  • Elongated, rectangular windows prioritize interior lighting and ambience, as the outside world will appear as an unrecognizable blur at speed.
  • There is potential for OLED information panels on windows to display route data or scenery overlays.
• Economic Transformation [17:11]

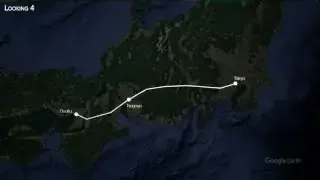

  • By drastically reducing travel times between Tokyo, Nagoya, and Osaka, the Chuo Shinkansen aims to integrate these three major metropolitan areas into a "single massive labor and market basin."
  • This unification is expected to generate a positive economic impact estimated between 5 to 17 trillion yen (approx. $40-110.5 billion USD) during the line's first 50 years of operation.
  • Despite its high cost, the project's benefit-to-cost ratio of approximately 1.9:1 is moderate compared to some other large infrastructure projects globally.
• Global Significance [18:48]
  • Achieving 500 km/h in commercial service is a landmark breakthrough that will inspire other countries to advance their high-speed rail technologies.
  • Ticket prices are expected to be comparable to the existing Tokaido Shinkansen line.
  • The Chuo Shinkansen is anticipated to attract a large volume of business travelers seeking increased professional efficiency, as well as tourists from around the world eager to experience the fastest train ever built.
