This video explores the advanced vocal capabilities of birds, focusing on their complex syrinx, which allows for intricate sound modulation similar to AM/FM radio. It delves into various types of bird mimicry, from courtship displays to defensive tactics, highlighting the exceptional intelligence of European Starlings. The presenter demonstrates an experiment where a rescued Starling named "The Mouth" successfully replicated a sound generated from a drawn image of a bird, effectively storing and transmitting image data through its vocalization. The video also provides a comprehensive guide to accessible bioacoustic tools and resources, including DIY bird monitoring setups like Birdnet-Pi, ultrasonic microphones, and free apps from Cornell Lab of Ornithology for continuous observation and identification of bird species.
The Starling 'The Mouth' replicated a sound generated from an image, effectively storing and transmitting the image data.
[
00:13:47
]
Birds possess an incredibly complex vocal system, which has evolved over 500 times longer than humans have existed.
A geological timeline illustrating the relative evolutionary duration of birds compared to humans and primates.
[
00:00:11
]
Human Vocalization (Larynx): Humans use lungs to push air through the larynx, precisely controlling airflow through vocal cord folds to create sounds.

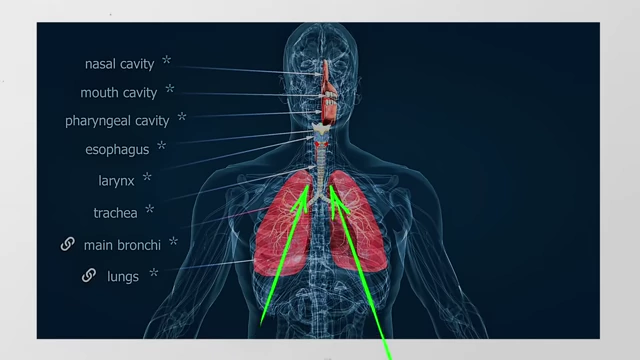

A human respiratory system diagram highlighting the lungs, trachea, and larynx for vocalization.
[
00:01:49
]
The level of muscular control over vocal cords is significant, allowing for vocal flap taps generating frequencies up to thousands of times per second.
A detailed anatomical illustration of human vocal cords in action.
[
00:02:00
]

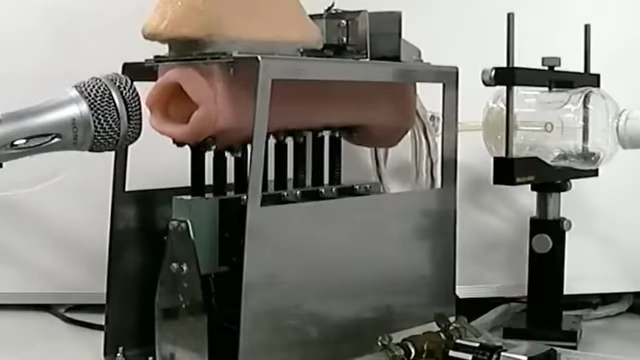

A mechanical device mimicking human vocalization to demonstrate sound production.
[
00:02:25
]
Articulation through the mouth and tongue creates vowels and consonants.
Bird Vocalization (Syrinx): Unlike the human larynx, songbirds have a syrinx, an organ with two pairs of muscles on each passage from the lungs, some with as many as 14 muscles.
An illustration of a bird, pointing out the location of its unique vocal organ, the syrinx.
[
00:02:52
]
A detailed anatomical drawing showing the musculature of a bird's syrinx, illustrating its complexity.
[
00:03:00
]
This enables exceptional precision and speed in pitch control, allowing them to shift notes hundreds or thousands of times per second.
A spectrogram illustrating the complex frequency sweeps of a Northern Cardinal's song when slowed down.
[
00:04:18
]
AM and FM Modulation: The speed of vocal changes in birds results in amplitude modulation (AM) and frequency modulation (FM), similar to radio wave transmission.
A diagram of a bird's internal anatomy indicating the two separate air passages from the lungs and how they contribute to AM and FM sound modulation.
[
00:03:20
]
A comparative diagram of AM and FM radio frequency bandwidths, illustrating the concept of modulation.
[
00:03:28
]
Amplitude modulation is the rapid changing of sound volume.
A visual representation of amplitude modulation, showing rapid changes in sound volume.
[
00:03:37
]
Frequency modulation involves modulating the frequency of a voice, which can create complex sounds, similar to FM synthesis used in music.

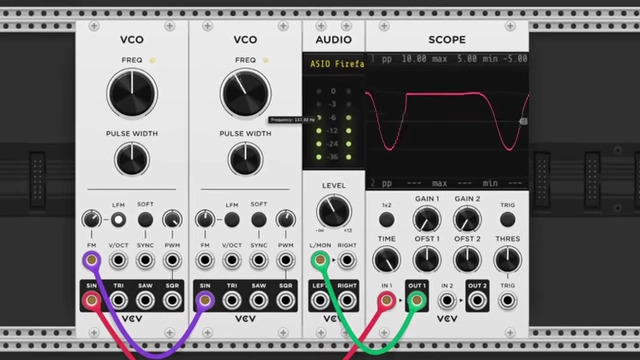

A screenshot of a virtual synthesizer interface demonstrating frequency modulation.
[
00:03:48
]
This complex modulation allows for incredibly intricate bird songs.
Exploring Ultrasonic Sounds and Bird Monitoring [4:05]
Ultrasonic Recording: Special ultrasonic microphones (up to 192 kHz) are used to record sounds beyond human hearing, revealing a hidden world of sounds.
Bat Sonar: These microphones can capture bat sonar fields, which when slowed down, reveal the detailed "barking" sounds bats use for echolocation.
An acoustic camera visualizing the ultrasonic sonar field emitted by bats, appearing as a colored heat map.
[
00:04:33
]

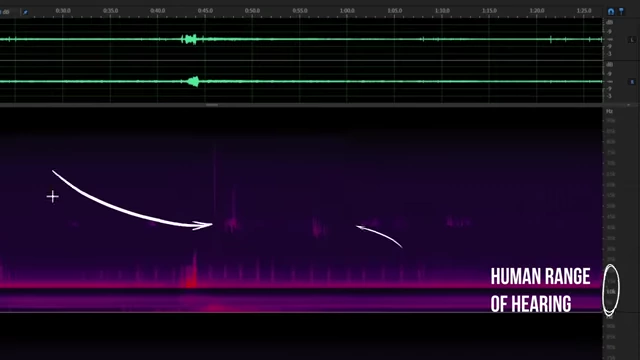

A spectrogram displaying sounds across different frequency ranges, highlighting those audible to humans versus ultrasonic sounds like bat echolocation.
[
00:04:36
]
A spectrogram showing the detailed "barking" sounds of bat echolocation when slowed down from ultrasonic recordings.
[
00:04:47
]
Personal Bird Monitoring Project: The speaker set up continuous 24/7 recorders and a DIY device on his property to monitor, classify, and track bird species, updating a local webpage with the data.
The system captured 31 bird species.
A bar chart displaying the top 19 most common bird species recorded by the automated bird monitoring device over a period.
[
00:05:19
]
Common Grackles are quickly declining and are sliding into the federally recognized endangered species category.
A "Conservation Status" scale showing a Common Grackle's classification as "Vulnerable" (VU) by IUCN 3.1.
[
00:07:20
]
Sonically Interesting Species:
Eastern Towhee: Uses amplitude modulation in its song.
A spectrogram of an Eastern Towhee's song, visually demonstrating amplitude modulation in its early swooping part.
[
00:07:42
]
Northern Cardinal: Known for a consistent, repetitive frequency sweep covering a range larger than an 81-key piano.

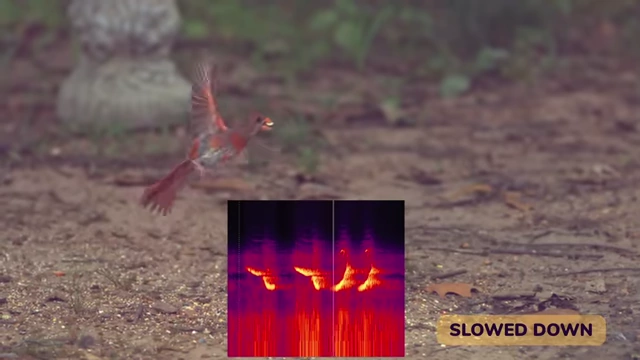

A spectrogram illustrating the wide frequency range and repetitive sweeps of a Northern Cardinal's song when slowed down.
[
00:08:09
]
Ruby-throated Hummingbird: Difficult to record due to wing buzzing and skittishness, with infrequent "songwriting" displays.
A spectrogram of a Ruby-throated Hummingbird's "songwriting" display when slowed down, showing intricate frequency patterns.
[
00:08:31
]
Tufted Titmouse: Produces a sound resembling a vintage camera, creating as many as 18 pitches simultaneously, few of which are natural harmonics.
A spectrogram showing the Tufted Titmouse's vocalization producing multiple pitches simultaneously, which are not natural harmonics.
[
00:08:53
]

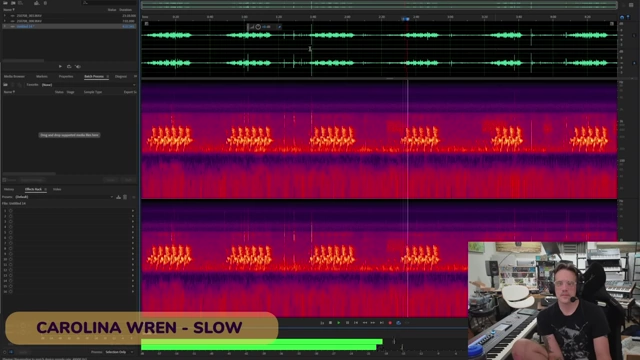

A spectrogram illustrating the real-time and slowed-down sounds of a Carolina Wren, highlighting its complex vocalizations.
[
00:09:20
]

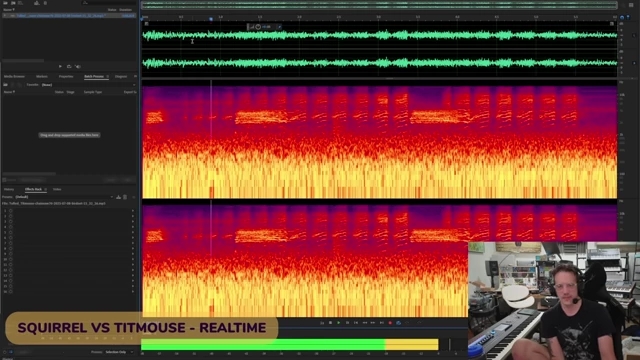

A spectrogram showing the "fight sounds" between a squirrel and a titmouse over a bird feeder, both in real-time and slowed down.
[
00:09:29
]
The Marvel of Bird Mimicry and Intelligence [9:54]
Mimicry in Birds: Various bird species employ mimicry for different reasons:
A definition and examples of "mimicry" in biology.
[
00:09:57
]
Northern Mockingbird: Males learn many songs to signal intelligence and longevity to females, also benefiting territory defense by deterring rivals.
Brown Thornbill (Australia): Mimics alarm calls of other species when threatened to create a dangerous atmosphere, deterring larger birds.
An illustration depicting a small brown thornbill mimicking an alarm call to deter a larger bird of prey.
[
00:10:38
]
Cuckoo Birds: Females lay eggs in other species' nests (brood parasitism). Cuckoo chicks mimic host offspring's begging calls to ensure they are fed, often without the host realizing.
A photograph showing a Robin feeding a much larger Cuckoo chick, illustrating brood parasitism.
[
00:11:07
]
European Starling Intelligence: Starlings are skilled mimicers and highly intelligent.
Crows seem to get credit for puzzle-solving skills and teamwork, but starlings demonstrate a different kind of intelligence.
A crow solving a puzzle on a table, demonstrating its intelligence.
[
00:11:29
]
A crow in an experimental setup, illustrating its problem-solving abilities.
[
00:11:39
]
Murmurations: Starlings are unique in their ability to form murmurations, large flocks that move as a single, fluid entity.
Defense Mechanism: This dense formation makes it harder for predators to target individual birds and can even take the form of a giant "monstrous bird."
A large murmuration of starlings forming a dense, fluid shape in the sky, with a hawk flying nearby.
[
00:11:58
]
Counting Skills: Murmurations rely on Starlings' advanced counting abilities; an individual Starling copies the flight pattern of its seven closest neighbors, with this behavior cascading through the flock. Crows, by contrast, can only count to four.
An illustration demonstrating how starlings in a murmuration copy the flight patterns of their closest seven neighbors.
[
00:12:24
]
Humans are not very good at measuring the intelligence of a class of species that have been evolving for well over 150 million years before humans existed.
A phylogenetic tree showing the evolutionary relationship between different animal groups, emphasizing the long history of birds.
[
00:12:40
]
Sound Replication: Starlings can effectively record and replay almost any sound they hear using their two lungs and syrinx.
The Starling Experiment: Storing Data in "The Mouth" [13:01]
Encountering "The Mouth": The speaker learned about "The Mouth," a male Starling (identified by a conceptual image).
The European Starling "The Mouth", identifying the subject of the experiment.
[
00:13:01
]
The Hypothesis: The speaker aimed to study The Mouth's acoustic and neurological abilities, specifically testing if the Starling could replicate a sound generated from an image, thereby storing and transmitting data.
A drawing of a duck was converted into a spectral sound using a synthesizer.
A spectrogram displaying the synthesized sound of a bird drawing, used as input for the Starling experiment.
[
00:13:38
]

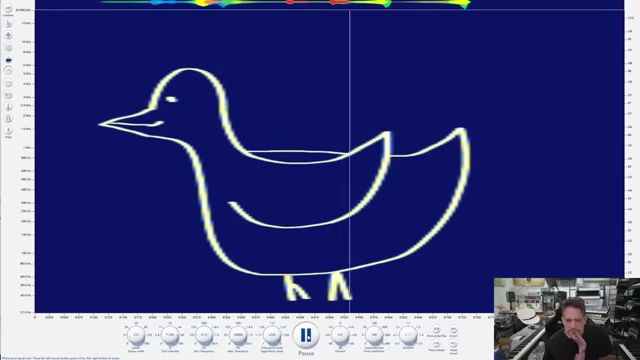

A spectral synthesizer interface showing the drawn image of a duck converted into a sound wave.
[
00:13:45
]
The Experiment: The sound of the drawn bird was played to The Mouth on a phone. Starlings have high temporal resolution, making a phone's lock screen appear as a rapid flicker, and imperfections in sound are more noticeable to them.
Birds in the passerine order can detect light pattern changes above 150 hertz, so a phone's lock screen would appear as a rapid flicker to a Starling.
A graph showing flicker fusion frequencies for blue tits at different light intensities, illustrating bird visual temporal resolution.
[
00:14:10
]
The Replication: The Mouth did not immediately clone the sound during the visit, but later analysis of the ultrasonic recordings revealed the Starling had indeed replicated the "bird drawing" sound, combining it with another vocalization.
The Starling also emulated an iPhone camera shutter sound.
A spectrogram of the original iPhone camera shutter sound, illustrating its waveform and frequency content.
[
00:15:16
]
A spectrogram of the Starling's emulation of the iPhone camera shutter sound, demonstrating its mimicry.
[
00:15:35
]
The sound of the Starling mimicking the shutter sounds is very precise.
A visual representation of a modular synthesizer patch, illustrating an attempt to recreate physical modeling with two voices.
[
00:15:56
]
A spectrogram of the Starling's complex vocalizations, showing multiple layers of sound.
[
00:16:27
]
Data Transfer: The Starling successfully emulated the sound in the exact frequency range it heard, effectively transferring approximately 176 kilobytes of uncompressed information. Hypothetically, with a 10:1 data compression, this could represent nearly 2 megabytes per second.
A spectrogram showing the Starling's vocalization of the bird drawing, demonstrating the successful replication of the image's sound.
[
00:17:27
]
A detailed view of the spectrogram showing the Starling's replication of the bird drawing sound, with a fundamental frequency line highlighted.
[
00:17:40
]
A conceptual image of the Starling "The Mouth" labeled with "portable, wireless, organic, 176KB memory" representing its data storage capability.
[
00:13:47
]

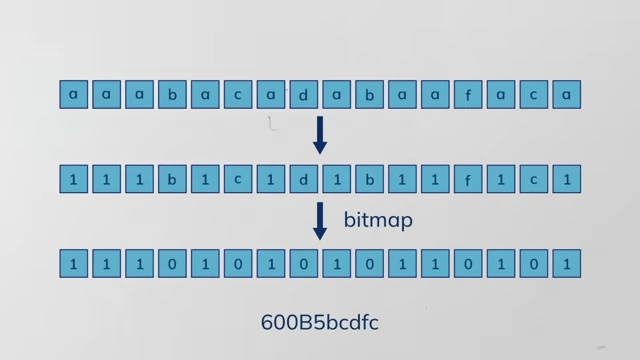

A diagram illustrating data compression concepts, showing uncompressed data transforming into a bitmap.
[
00:18:26
]
The Mouth's Background: The Mouth was found as a baby, likely left its nest due to the stress of constant train traffic. Its ability to replicate sounds with reverb and echo was previously thought impossible for mimicking species.
Sarah Tidwell, "The Mouth's" caretaker, standing in front of bookshelves in her home.
[
00:18:43
]
Sarah Tidwell's Animal Rescue: Sarah and her family care for numerous rescued animals, with their art projects funding their extensive efforts.
High-End Cost: Professional acoustic cameras with comparable precision can cost over $20,000, making them impractical for field use.
Affordable Alternatives (Fotric TD-2): An industrial imaging company developed a more affordable acoustic camera (Fotric TD-2), costing just over $1,000. It uses ultrasonic MEMS microphones and functions as a standalone device for recording photos and videos, analyzing data with desktop software without coding. It can locate bats, cicadas, and even detect mechanical faults or leaks.
An acoustic camera displaying sound sources as a heat map overlay on a video feed, demonstrating its use.
[
00:20:28
]
A software interface displaying microphone geometry and a point-spread function for acoustic camera design.
[
00:20:34
]
A comparison image of the Fotric TD-2 acoustic camera, highlighting its design and features.
[
00:21:16
]
Ultrasonic Recording Setup Recommendations:
Audio Recorder/Interface: Any recorder or audio interface supporting 192 kHz at 32 bits is recommended. Modern Zoom recorders (F3, F6, F8 series) offer excellent low self-noise and dynamic range (around $300 for F3). Avoid Tascam Porta Captures for ultrasonic recording due to high self-noise.
Ultrasonic Microphones:
Sonoris Objects S04: A good starting point, a stereo matched pair costs around $199.
A product page for the Sonoris Objects SO.4 Ultrasonic Omni Microphone, showing the device and its price.
[
00:24:17
]
DIY Microphones: Possible to build by soldering capsules to preamps.
Technical specifications and frequency response graphs for Primo EM172 and Knowles SPU1410 MEMS microphones.
[
00:24:27
]
Total Cost: A professional scientific stereo ultrasonic recording setup can be assembled for around $500.
Bat Sonar Recording (Echometer Touch): Wildlife Acoustics offers the Echometer Touch (starting at $179) for Android and iPhone devices, which includes an ultrasonic microphone and software to record, identify, and listen to bats in real-time.
A diagram illustrating bat echolocation, showing sound waves emanating from the bat and reflecting off objects.
[
00:25:05
]
AudioMoth: A portable, headless ultrasonic recorder (around $100) with open-source hardware and software.
Features: Records up to 24-bit, 384 kHz with an onboard microphone, runs for 12 days on AA batteries, and is highly customizable for various recording schedules or as a USB microphone.
A compact AudioMoth device attached to a tree branch, showcasing its portability and use for outdoor bioacoustic recording.
[
00:25:15
]

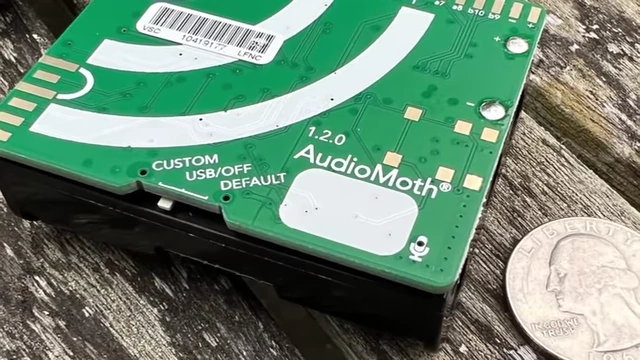

A close-up of the AudioMoth circuit board, next to a quarter for scale, highlighting its small size.
[
00:25:25
]
Variations: Available for underwater recording, automatic GPS logging, or as development boards for integration into custom devices.
Birdnet-Pi: A low-cost, powerful "bird computer" for continuous bird song identification and data logging.
Purpose: Monitors surroundings, records sounds, recognizes bird songs, and updates a local webpage with an organized information library.
A screenshot of the Birdnet-Pi web interface, showing identified bird species and their spectrograms.
[
00:26:58
]

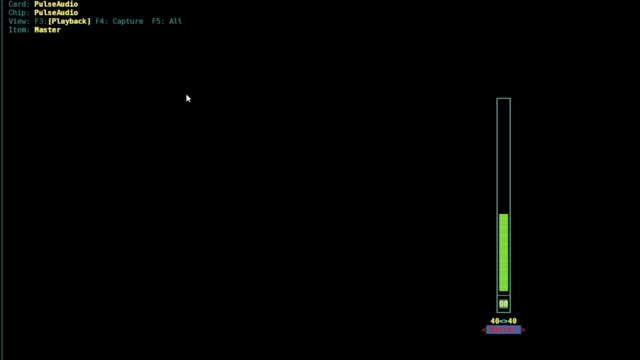

A terminal interface displaying real-time audio levels, used for advanced Birdnet-Pi configuration.
[
00:27:01
]
Accessibility: Does not require subscriptions, personal data, or internet connection, and is user-friendly for all ages.
Setup Examples: Ranges from $40 to $250 depending on preferences.
Cornell Lab of Ornithology: Offers free tools and databases for bird enthusiasts and researchers.
The logo for The Cornell Lab of Ornithology, an institution offering free birding resources.
[
00:28:31
]
Merlin Bird ID App: Identifies birds by sound using machine learning and GPS coordinates, providing species information.
eBird: A massive database for bird sightings, allowing users to find recent bird observations in specific regions.
A map from eBird showing the distribution and sightings of starlings across North America.
[
00:28:54
]
Macaulay Library: An extensive, community-powered collection of bird information, photographs, videos, and hundreds of thousands of sound recordings spanning nearly 50 years.
A screenshot of the Macaulay Library website, showcasing a vast collection of bird photos, videos, and audio recordings.
[
00:29:14
]
A gallery of spectrograms and waveform visualizations from the Macaulay Library, illustrating the diversity of bird vocalizations.
[
00:29:19
]
Cornell Lab also offers free desktop bioacoustic software like Raven Lite.

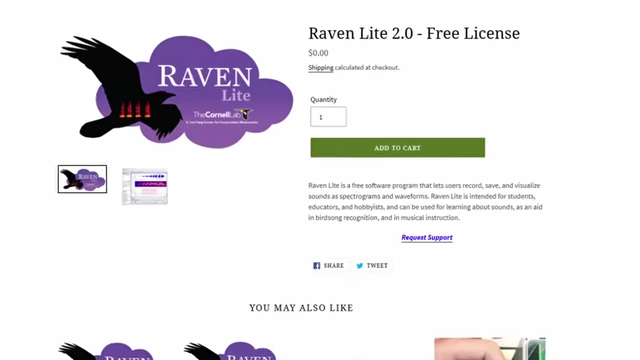

A screenshot of the Raven Lite 2.0 software page, a free bioacoustic tool from Cornell Lab.
[
00:29:23
]
