Building and Deploying a Stateless Remote Model Context Protocol (MCP) Server with TypeScript and Streamable HTTP

Tom Dohnal

Introduction to Model Context Protocol (MCP) [00:00:00]

The video begins by introducing a scenario where a database for reviewing AI models needs to be integrated with AI applications like Cursor or VS Code desktop.

• The goal is to create a Model Context Protocol (MCP) server to facilitate this integration.
• The approach involves first building a local MCP and then extending the same core logic to a remote MCP.
  • The MCP "core" (tool definitions) remains consistent between local and remote implementations.
  • Only the "transport layer" changes: local uses standard I/O, remote uses streamable HTTP.

Implementing a Local MCP Server [00:00:24]

The initial step is to define the functionalities (tools) of the MCP server.

• getModelNames Tool [00:00:27]
  • Purpose: Retrieves all model names from the ai_models table.
  • Implementation: A simple SQL query SELECT name FROM ai_models;
  • Output: Returns model names as JSON.
• getReviews Tool [00:00:44]
  • Purpose: Fetches reviews for a given model name.
  • Arguments: Accepts modelName as an input.
  • Implementation: Constructs a SQL query to join model_reviews and ai_models tables, filtering by ai_model.name.
  • Output: Returns reviews as JSON for the specified model.



• Connecting the Local MCP Server [00:03:07]
  • The local MCP server uses a standard I/O transport layer.
  • Code involves instantiating StdioServerTransport and connecting it to the MCPServer instance.

Understanding MCP Transport Layers (Standard IO vs. Streamable HTTP) [00:01:14]

The video elaborates on how different transport layers handle communication between MCP clients and servers.

• Standard I/O (stdio) Transport [00:01:18]
  • Mechanism:
    • An MCP client (e.g., Cursor) launches a local MCP server.
    • The client writes requests to the server's standard input (stdin).
    • The server responds by writing results to its standard output (stdout), which the client reads.
  • Protocol: Uses JSON RPC (Remote Procedure Call) for requests and responses, which are structured JSON objects.
  • Applicability: Ideal for local machine environments where client and server run on the same system.

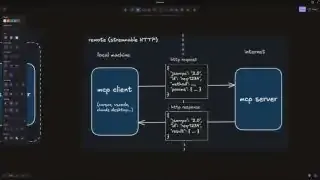

• Streamable HTTP Transport [00:02:04]
  • Mechanism:
    • Instead of stdin/stdout, communication occurs via HTTP requests and responses over the internet.
    • MCP client sends HTTP requests, and the remote MCP server sends HTTP responses.
  • Protocol: Still uses JSON RPC for the content of requests and responses.
  • Streaming: Optionally supports streaming HTTP responses, which gives it the "streamable" designation.
  • Replaces Deprecated Technology: Streamable HTTP replaces Server-Sent Events (SSE) (aka SSC) which is deprecated.



Local vs. Remote MCP Server State Management [00:04:55]

The video discusses how state is managed in local versus remote MCP servers.

• Local MCP Servers (stdio) [00:05:10]
  • Relationship: Always a one-to-one relationship between an MCP client and an MCP server.
  • Statefulness: Each MCP server instance maintains its own state (e.g., message history, request count) without needing explicit session management.
  • Isolation: Each client launches its own server, ensuring complete isolation of state.
• Remote MCP Servers (Streamable HTTP) [00:05:51]
  • Challenge: Multiple clients can connect to a single remote HTTP server, requiring a way to manage state for each client.
  • Stateful (with session management) [00:06:00]
    • When a client first connects, the HTTP server creates a new MCP server instance and assigns a session-id.
    • Subsequent requests from that client include the session-id, allowing the HTTP server to route requests to the correct, stateful MCP server instance.
    • This approach is more complex, potentially requiring authentication.
  • Stateless (without session management) [00:07:08]
    • Simplicity: A new MCP server instance is created for every incoming request.
    • Handling: The request is processed, a response is sent, and the server instance is then discarded.
    • Benefit: Avoids the complexities of session management and state tracking on the server side.



Building a Stateless Remote MCP Server with Streamable HTTP [00:07:44]

The implementation shifts from local stdio to remote stateless streamable HTTP.

• Refactoring Server Creation [00:07:52]
  • The MCP server creation logic (defining tools) is encapsulated in a getServer function.
  • This allows a fresh server instance to be generated for each incoming HTTP request.
• Setting Up the HTTP Server [00:08:03]
  • An Express application (app) is used as the HTTP server.
  • The MCP SDK requires Express request objects, so native Bun server cannot be used directly.
• Defining the MCP Endpoint [00:08:21]
  • A POST endpoint (/mcp) is registered to handle incoming MCP requests as per the specification.
  • Request Handling Logic:
    • Call getServer() to create a new, fresh MCP server instance.
    • Instantiate StreamableHttpServerTransport, passing undefined for sessionIDGenerator to ensure stateless operation.
    • Register a res.on('close') event listener to close the transport and server when the HTTP response stream ends, ensuring resource cleanup.
    • Connect the newly created server to the transport (server.connect(transport)).
    • Handle the incoming HTTP request using transport.handleRequest(req, res, req.body).
    • Implement a try-catch block for robust error handling, returning JSON RPC compliant error codes in case of failures.
• Starting the HTTP Server [00:10:14]
  • The Express app is configured to listen on a specified port (e.g., 3000).

Testing the Remote MCP Server [00:10:31]

The remote server's functionality is verified in multiple environments.

• Local Testing with MCP Inspector [00:10:31]
  • The MCP inspector is configured to use the Streamable HTTP transport type.
  • The URL is set to http://localhost:3000/mcp.
  • The local HTTP server is launched manually.
  • Both getModelNames and getReviews tools are successfully executed via the inspector.
• Deployed Testing [00:11:34]
  • The server code is deployed to a cloud platform (e.g., Render, which supports Bun).
  • The MCP inspector's URL is updated to point to the deployed instance's MCP endpoint.
  • The tools are tested again, confirming functionality in a deployed environment.

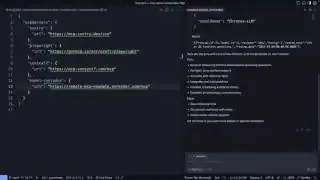

• Integration with Cursor AI [00:12:08]
  • The remote MCP server's URL is added to Cursor's MCP tools settings.
  • An AI assistant in Cursor is then used to query the deployed MCP server:
    • Asking "what models are in tostardos" successfully invokes the getModelNames tool.
    • Asking "what are the pros and cons of the Kronos model" successfully invokes the getReviews tool, demonstrating the AI's ability to infer parameters and present results in a human-readable format.



Conclusion and Recap [00:13:34]

The video concludes by reiterating the key takeaways:

• The core MCP logic (tool definition) is reusable for both local and remote servers.
• Transport layers are interchangeable (stdio for local, streamable HTTP for remote).
• Streamable HTTP remote servers can be either stateful (with session management) or stateless (new server per request). The video demonstrated the stateless approach for simplicity.
