China's Thorium Reactor: The Operational Breakthrough Using Declassified US Research

ColdFusion

Introduction to Thorium and its Potential [0:00:00]

China has achieved a significant milestone by bringing what is claimed to be the world's first operational thorium nuclear reactor to life in Gansu Province. This remarkable feat was accomplished using declassified American research.

• Thorium's Promise [0:00:20]
  • For decades, thorium has been considered the "holy grail" of nuclear energy.
  • It is believed to be cleaner, safer, and almost impossible to weaponize, unlike traditional nuclear fuels.
  • This innovation highlights the potential of public investment in long-term research, even when the payoff takes half a century.
• Efficiency and Abundance [0:01:21]

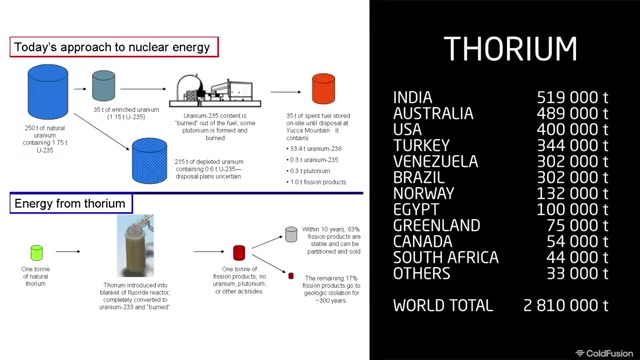

  • Just 5,000 tons of thorium could supply the planet with all its energy for an entire year.

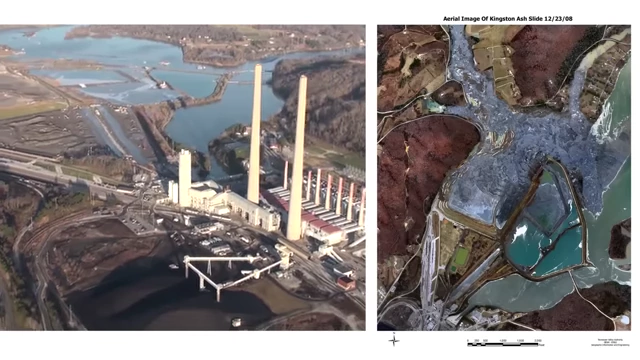

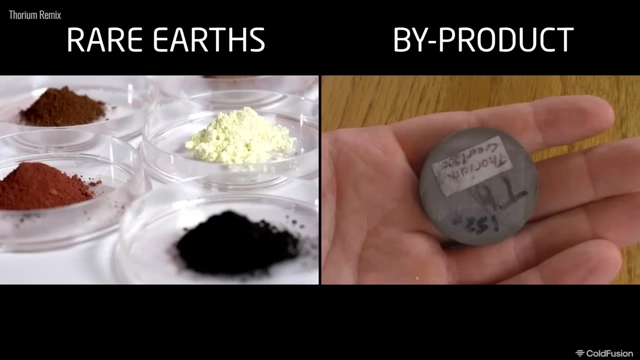

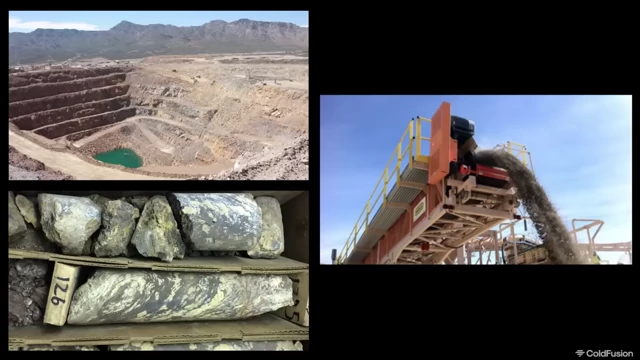

  • It is found in tailings piles and ash piles, and is also a byproduct of rare earth mining.





  • Thorium can be used about 200 times more efficiently than uranium.





  • It significantly reduces waste generation compared to uranium (by factors of hundreds) and fossil fuels (by factors of millions).



  • Despite its immense potential, operational thorium reactors have remained largely theoretical until now, with China's being the sole working example.

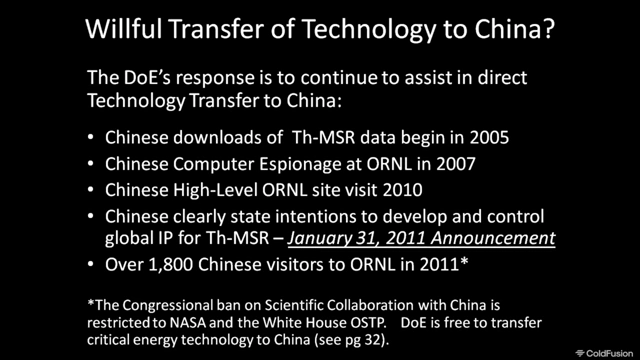

  • The Chinese thorium reactor was built on American research, which was publicly available.





What are Thorium Reactors? [0:04:24]

Thorium reactors utilize thorium, a naturally occurring element, as their fuel source.

• How Thorium Becomes Fuel [0:04:34]

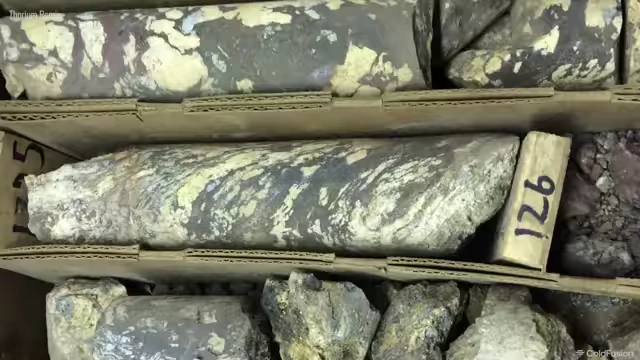

  • Thorium is found in rock deposits.

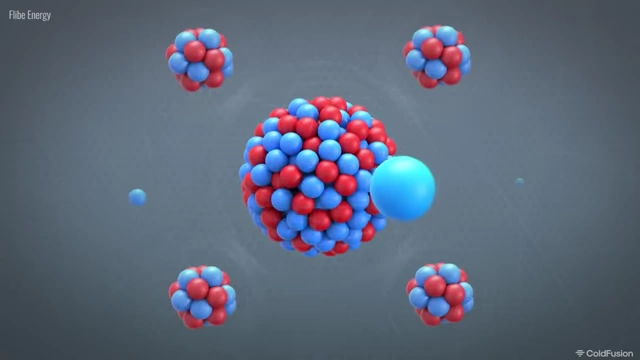

  • When thorium is bombarded with neutrons, it absorbs them, eventually transforming into uranium-233, a fissile material.



  • Fissile materials split when blasted with neutrons, releasing energy that can be converted into electricity.



  • Unlike uranium-235, naturally occurring thorium-232 is not fissile on its own, meaning it cannot sustain a nuclear reaction without an external neutron source. However, it is fertile, capable of being transformed into a fissile material.

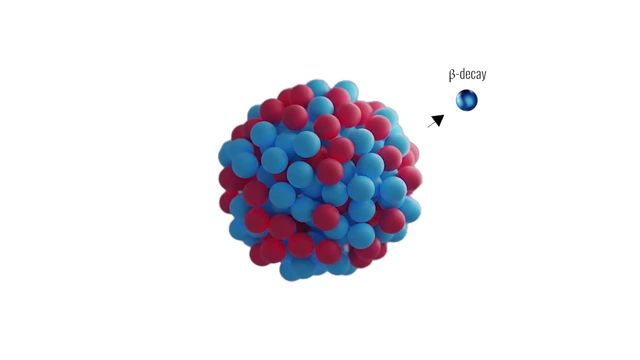

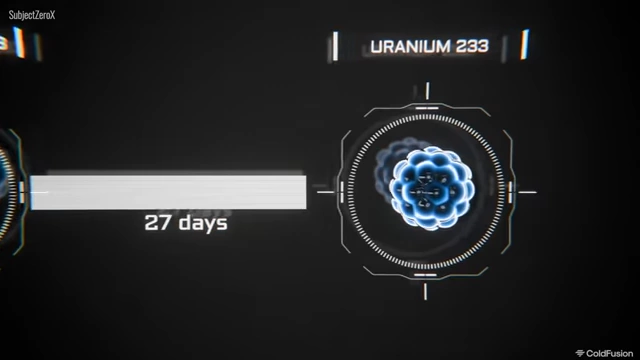

  • The transformation process involves thorium-232 being blasted with neutrons to become thorium-233, which then beta decays into protactinium-233.



  • The protactinium-233 is then extracted and decays into usable uranium-233.



• Molten Salt Reactors (MSRs) and Thorium [0:06:04]

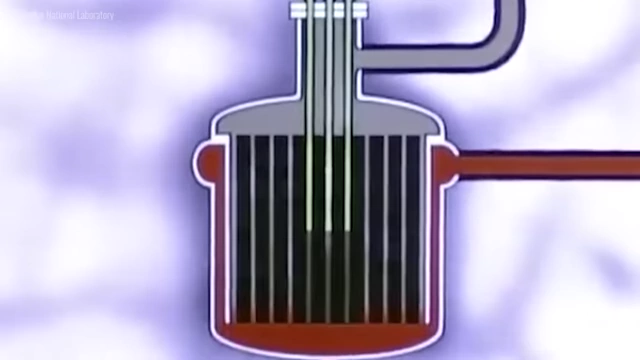

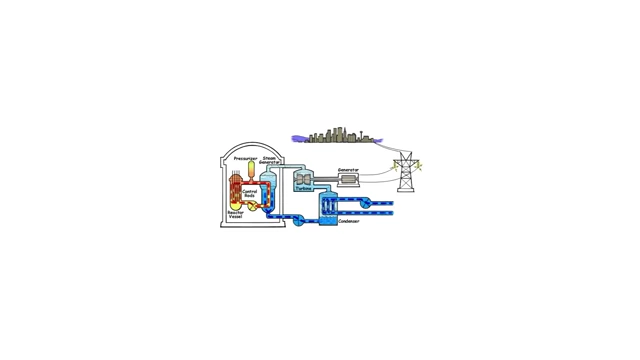

  • Traditional nuclear reactors with solid fuel rods and pressurized water cooling are not well-suited for thorium, as it's difficult to extract intermediate materials during the reaction.
  • Molten Salt Reactors (MSRs) use liquid fuel, making it much easier to isolate protactinium and continue the thorium fuel cycle.

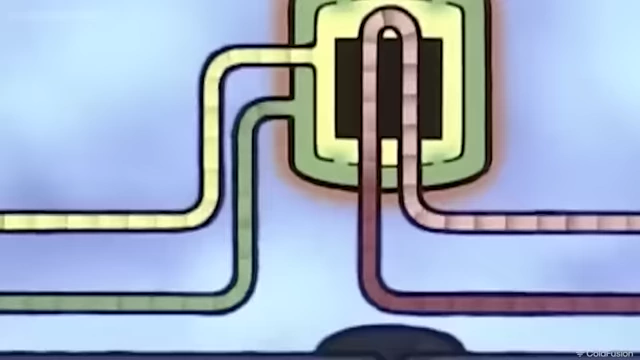

  • MSRs offer significant safety advantages over standard water-cooled reactors:
    • They operate at low pressure, eliminating the need for high-pressure water systems that can lead to steam explosions.
    • In an emergency, a plug at the bottom of the reactor melts automatically, allowing the liquid fuel to drain out by gravity, preventing meltdowns.





• Key Advantages of Thorium [0:08:22]

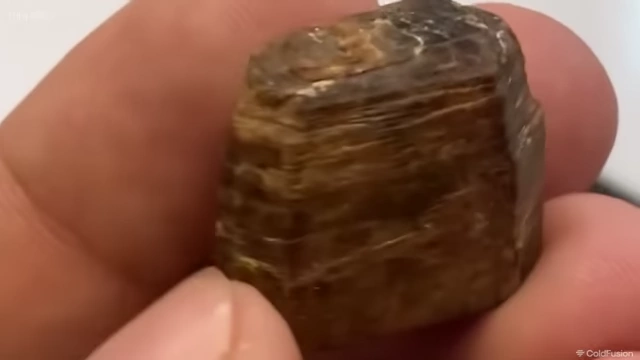

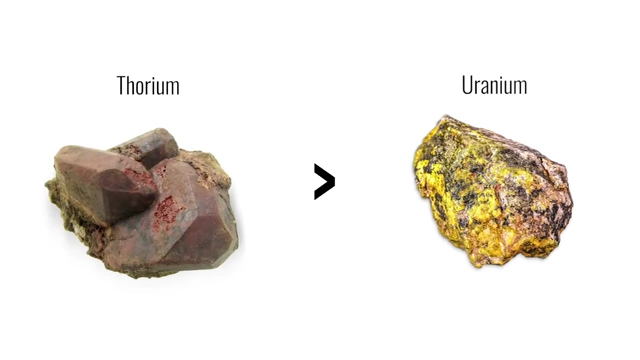

  1. Abundant: Thorium is three times more abundant than uranium, found globally in rocks and as a byproduct of rare earth mining. China alone has enough thorium to power its energy needs for 20,000 years.











  2. Safer: Thorium is not fissile on its own, providing greater control over the reaction. While not entirely "proliferation resistant," it is more expensive to weaponize. The molten salt design inherently reduces accident risks.
  3. Cleaner: Thorium reactors do not emit greenhouse gases. Thorium waste becomes safe in a few hundred years, drastically shorter than the tens of thousands of years required for uranium waste.

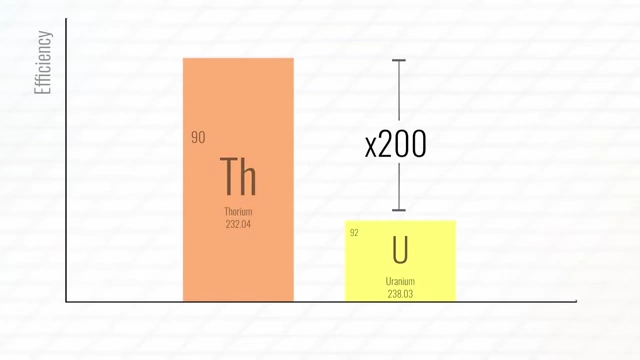

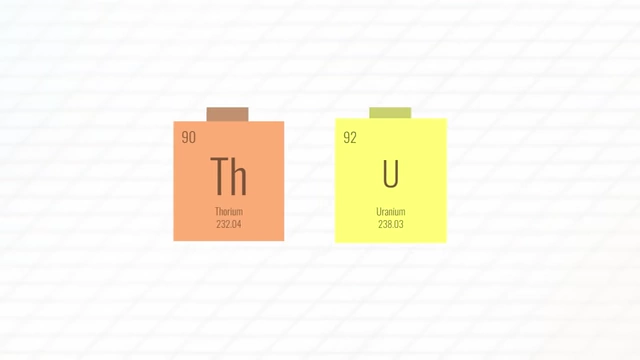

  4. Efficient: Thorium can generate up to 200 times more energy than an equivalent amount of uranium. For instance, a thorium battery the size of a uranium battery providing one day of power could last 6.5 months.



Why the U.S. Abandoned Thorium [0:11:06]

Despite its promising characteristics, molten salt reactors (MSRs) remained largely experimental for decades, especially in the United States.

• Regulatory Hurdles [0:11:13]

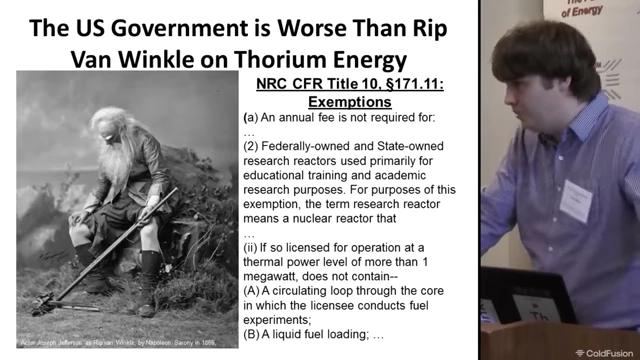

  • NRC regulations in the US specifically prohibited fluid-fuel reactors beyond a certain power output without expensive licensing.



• Cold War Priorities [0:11:24]
  • After World War II, the US prioritized developing nuclear weapons, leading to an intense focus on uranium.
  • The Pentagon required fast breeder reactors that could produce plutonium for the nuclear arms race, which thorium reactors were not suited for.
  • Research at Oak Ridge National Laboratory, led by Director Alvin Weinberg, explored thorium-fueled molten salt reactors as a safer, less weaponizable alternative.

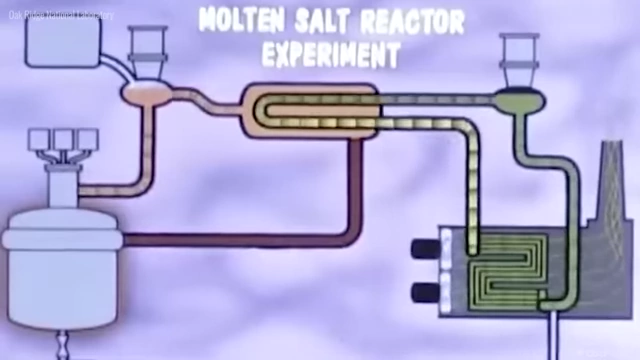

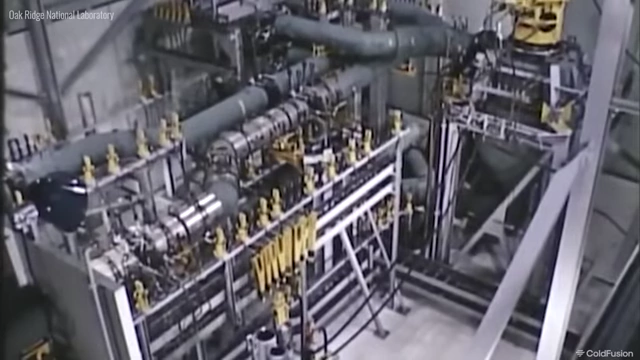

  • The Molten Salt Reactor Experiment (MSRE) ran from 1965 to 1969 with incredibly promising results, becoming the foundation for all subsequent MSR research.
  • However, Weinberg's vision for clean, sustainable thorium energy was terminated in the early 1970s, as the US ceased funding thorium efforts in favor of plutonium fast breeder reactors.





  • Weinberg himself noted there were "no technical reasons" for abandoning MSR development.



• Scientific Bias [0:14:16]
  • Nuclear power research in the 1950s and 60s was dominated by physicists who thought in terms of solid fuel pins and neutron behavior.



  • The chemistry-intensive nature of molten salt reactors was not fully appreciated by non-chemists in the mainstream nuclear community.



Cold War Cast-Off: Thorium's 21st-Century Comeback [0:14:42]

The Oak Ridge experiment was defunded, and thorium research largely stalled until the 2000s.

• Kirk Sorenson's Rediscovery [0:15:03]
  • NASA engineer Kirk Sorenson, while researching ways to power a lunar community, stumbled upon Oak Ridge's declassified research on molten salt reactors and thorium.
  • He was fascinated by thorium's high energy density and abundance on Earth and the moon.





  • Sorenson became a prominent advocate, convinced that continued US thorium research could have led to energy independence by the early 2000s, but his message largely fell on deaf ears in the US.
• China Seizes the Opportunity [0:15:42]

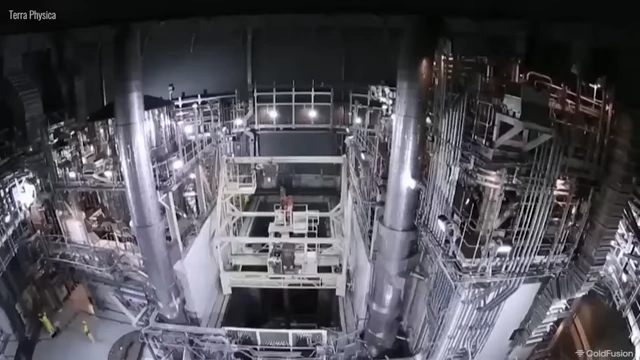

  • While the US remained hesitant, China recognized the immense potential in the publicly available declassified American research.
  • Chinese researchers saw that a thorium-fueled molten salt reactor could address their escalating energy needs and bolster national interests.

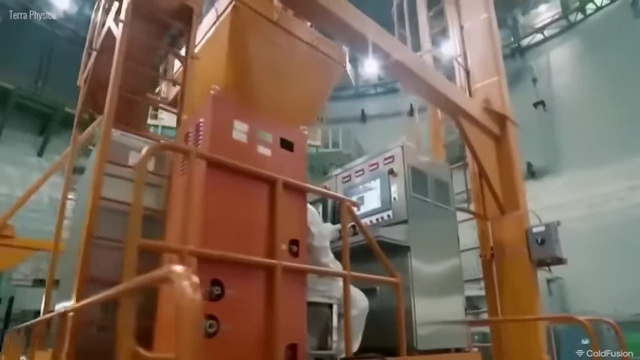

  • In 2009, China's thorium project formally commenced, with construction beginning in 2018.
  • Hundreds of Chinese scientists dedicated years to dissecting American documents, replicating experiments, and designing new materials.





  • The project lead aptly summarized their approach: "Rabbits sometimes make mistakes or grow lazy. That's when the tortoise seizes its chance."

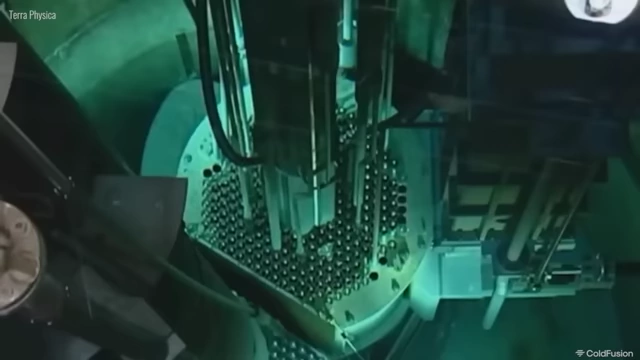

  • In 2023, China's thorium molten salt reactor successfully achieved a sustained nuclear chain reaction, becoming operational by June 2024.





Thorium: Separating Hype from Reality [0:16:48]

While China's achievement is significant, a realistic assessment of thorium's future involves addressing its inherent challenges.

• Past Failures and Economic Hurdles [0:16:56]
  • Several commercial thorium plants existed in Germany, India, the Netherlands, and the US from the late 1940s but none survived past the 1980s.
  • The primary reason for their failure was economic: extracting thorium from ore and converting it into fuel was more expensive than for uranium.
  • Achieving thorium's high efficiency (200x that of uranium) requires continuous fuel reprocessing, which is a costly process.



  • While thorium is difficult to weaponize, it's not impossible; rather, it's simply more expensive to use for weapons production.
• Material Science Challenges [0:18:01]
  • Molten salt, while an effective coolant, is extremely hot and corrosive to reactor materials.

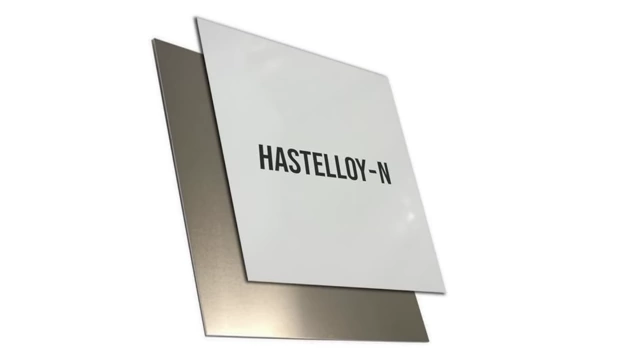

  • Developing materials that can withstand this corrosivity long-term has been a major hurdle. China has addressed this by developing a custom alloy called Hastelloy N.



• Future Potential and Current Status [0:18:19]
  • If thorium proponents' claims prove true, nations could power entire cities, potentially eliminating the need for fossil fuels and short-lived, degrading renewable sources like wind and solar.

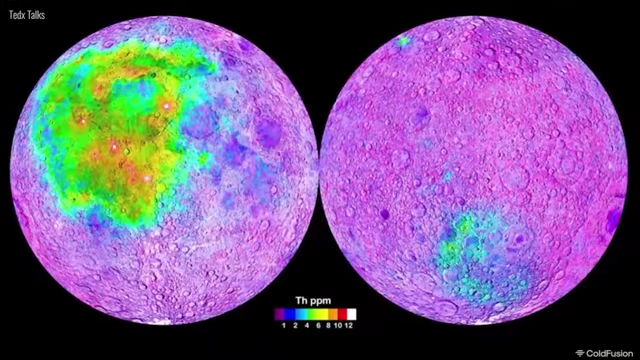

  • Molten salt reactors do not require water cooling, allowing them to operate in deserts or even space, where thorium is abundant and easily detectable (as seen on the moon).
  • Despite the promising aspects, critics argue that many claims are oversimplified and the path to widespread thorium adoption will be arduous.

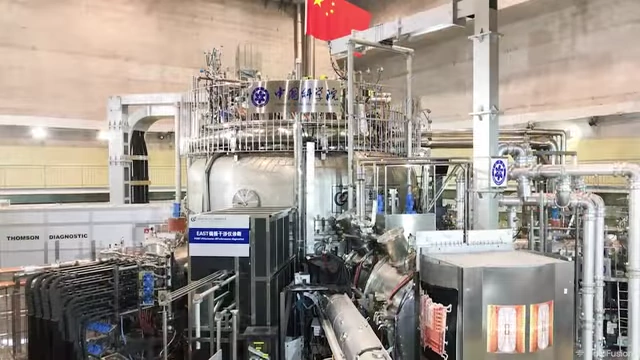

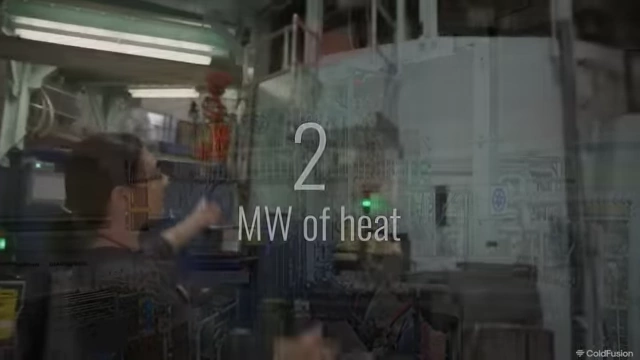

  • China's current test reactor is small, rated for only 2 megawatts of heat, significantly smaller than typical research reactors.





  • However, China plans for a larger 60-megawatt reactor to be operational by 2030.

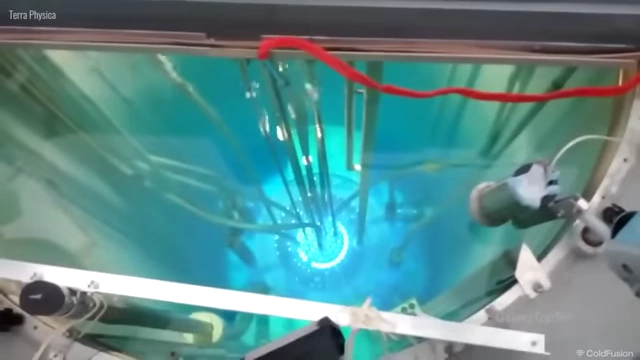

  • A major breakthrough by Chinese scientists was the ability to add fresh fuel to the thorium reactor while it was running, proving continuous operation is possible.



• Global Outlook [0:19:43]

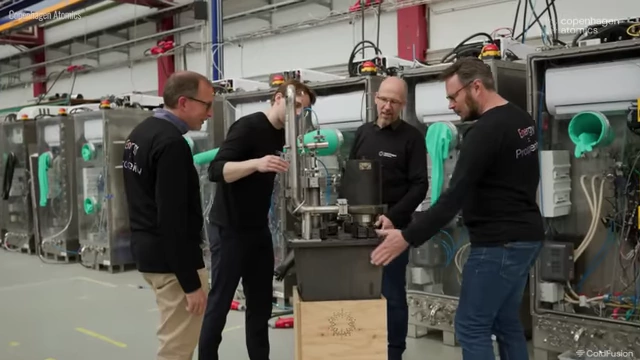

  • Other countries are also pursuing thorium: Copenhagen Atomics plans to test a molten salt thorium reactor in Switzerland by 2026, with intentions for mass manufacturing.



  • India, possessing the world's largest thorium reserves, has conducted long-term research but progress has been slow, partly due to its refusal to sign the nuclear non-proliferation treaty.
  • Several startups in the US and other countries are attempting to revive molten salt reactor development, though most remain in the conceptual phase.
• Conclusion [0:20:17]
  • The thorium story underscores the power of public research and how past R&D can seed future innovation decades later.
  • It also highlights how easily research momentum can stall. As Zu Hong stated, achieving meaningful progress in this field requires "perseverance and [dedication of] 20 to 30 years to one single pursuit." The debate continues whether thorium is the clean energy revolution of the future or if resources should be directed elsewhere.
